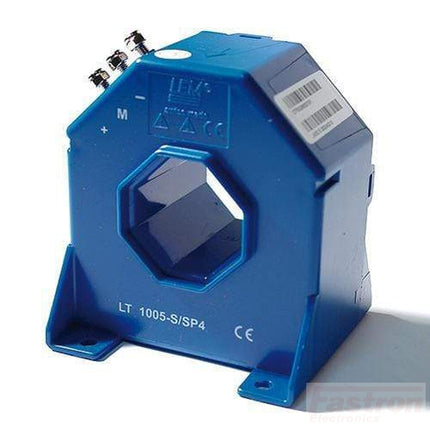

LT 1005-S, C/L Current Transducer,Ipn = 1000A, +/-15/24VDC, 200mA output, X = 0.4%
Rated 3.5/5 based on 11 customer reviews

LT 1005-S, C/L Current Transducer,Ipn = 1000A, +/-15/24VDC, 200mA output, X = 0.4%

  • Order within

Free Shipping for $300 Spend

Available: Backorder in 6-8 Weeks
$505.00
$555.50inclGST

Free Shipping for $300 Spend

Wishlist Compare

LEM LT Series Open Loop AC/DC Hall Effect Sensor

Features

  • Bipolar and Insuated current measurement up tp 2000 Amp
  • Current output
  • Bandwidth DC to 150kHz
  • Closed loop (compensated) current transducer
  • Panel mounting
  • Insulated plastic case recognized according to UL 94-V0

Advantages

  • Very good linearity
  • High accuracy
  • Low offest drift over temperature
  • Wide frequency bandwidth
  • Very low insertion losses
  • High immunity to external interference
  • Current overload capability
  • Low power consumption

Applications

  • Windmill Inverters
  • Test and Measurement
  • Substations
  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications

Application Domain

  • Industrial

Standards

  • EN 50178:1997
  • IEC61010-1:2010
  • UL 508:2010

LEM LT Series Open Loop AC/DC Hall Effect Sensor

Features

  • Bipolar and Insuated current measurement up tp 2000 Amp
  • Current output
  • Bandwidth DC to 150kHz
  • Closed loop (compensated) current transducer
  • Panel mounting
  • Insulated plastic case recognized according to UL 94-V0

Advantages

  • Very good linearity
  • High accuracy
  • Low offest drift over temperature
  • Wide frequency bandwidth
  • Very low insertion losses
  • High immunity to external interference
  • Current overload capability
  • Low power consumption

Applications

  • Windmill Inverters
  • Test and Measurement
  • Substations
  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications

Application Domain

  • Industrial

Standards

  • EN 50178:1997
  • IEC61010-1:2010
  • UL 508:2010
LEM Part Number LT 1005-S
Technology Closed Loop Hall Effect
Aperture ø40.5mm
ROHS Yes
Supply Voltage +/- 15 VDC to +/- 24 VDC Bipolar, Isolated
Load Current (RMS + DC) 1000 Amp
Measurement Range +/- 2000 Amp
Output 200 mA
Isolation 6 kV
Bandwidth DC-150 kHz
Mounting Style Panel Mount
Operating Temperature Range -10°C / 85°C
Accuracy 0.4%
Termination Style M4 theaded studs
Unit Weight 850g
Factory Pack Quantity 4
