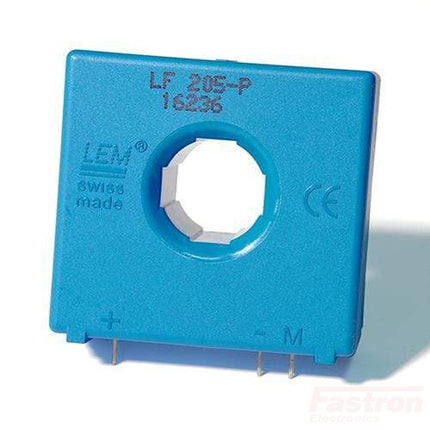

LEM LF 205-P Series Open Loop AC/DC Hall Effect Sensor

Features

• Bipolar and Insuated current measurement up tp 420 Amp
• Current output
• Bandwidth DC to 100kHz
• Closed loop (compensated) current transducer
• Panel mounting
• Insulated plastic case recognized according to UL 94-V0

Advantages

• Very good linearity
• High accuracy
• Low offest drift over temperature
• Wide frequency bandwidth
• Very low insertion losses
• High immunity to external interference
• Current overload capability
• Low power consumption

Applications

• Windmill Inverters
• Test and Measurement
• Substations
• AC variable speed drives and servo motor drives
• Static converters for DC motor drives
• Battery supplied applications
• Uninterruptible Power Supplies (UPS)
• Switched Mode Power Supplies (SMPS)
• Power supplies for welding applications

Application Domain

• Industrial

Standards

• EN 50178:1997
• IEC61010-1:2010
• UL 508:2010

• Product Datasheet

• LEM Applications Manual 3rd Edition
