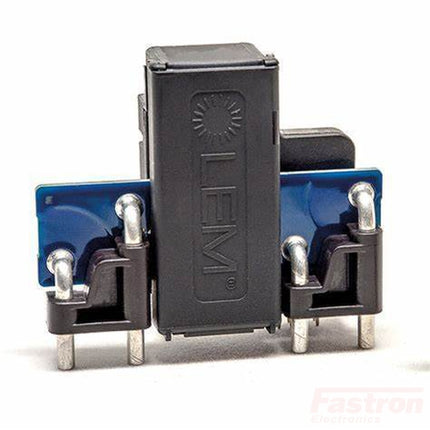

LDSR 0.3-TP/SP1, C/L 3 Phase Hall Effect Current Sensor, 300 Amp, 2.5V ref in ref Out, PCB Mount, 1.71kV Isolation

LDSR 0.3-TP/SP1, C/L 3 Phase Hall Effect Current Sensor, 300 Amp, 2.5V ref in ref Out, PCB Mount, 1.71kV Isolation

Product form
Free pickup in our shop(s)

9 pcs in stock

$61.77 $67.95 inclGST Excl. VAT

        SKU: FE-LDSR 0.3-TP/SP1

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        LDSR 0.3-TP/SP1, C/L 3 Phase Hall Effect Earth Leakage Current Sensor, 300mA

        Features

        • Closed loop (compensated) current transducer
        • Voltage output
        • Single supply voltage
        • PCB mounting.

        Advantages

        • Very low offset drift temperature coefficient
        • High overload capability
        • High insulation capability
        • Reference pin with two modes, Ref IN and Ref OUT
        • Test winding

        Applications

        • Leakage current measurement in transformerless PV inverters
        • 3 phases plus neutral
        • First human contact protection of PV arrays
        • Failure detection in power sources
        • Symmetrical fault detection
        • Current leakage detection in stacked DC sources
        • Nominal current per phase measurement up to ±30 A per wire (DC or AC).

        Standards

        • EN 61800-1: 1997
        • EN 61800-2: 2015
        • EN 61800-3: 2004
        • UL 62109-1: 2010
        • IEC 61010-1: 2010
        • UL 508.

        Application Domains

        • Industrial
        Specification
        LEM Part Number LDSR 0.3-TP/SP1
        Technology Closed Loop Hall Effect
        ROHS Yes
        Supply Voltage +/-15VDC
        Load Current (RMS + DC) 300mA
        Measurement Range +/-900mA
        Output 2.5Vref
        Isolation 1.71kV
        Bandwidth DC-2kHz
        Response Time 25uS
        Mounting Style PCB Mount
        Operating Temperature Range -40°C / 105°C
        Accuracy 2-5%
        Aperture N/A
        Unit Weight 28g
        Factory Pack Qty 10

        Datasheet
