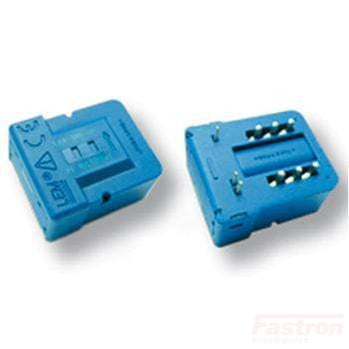

LAX 100-NP, C/L Multi Range Hall Effect Current Sensor, 100 Amp, 50mA Output, No Aperture, +/-12..15V Supply, PCB Mount, X = 0.91%

LAX 100-NP, C/L Multi Range Hall Effect Current Sensor, 100 Amp, 50mA Output, No Aperture, +/-12..15V Supply, PCB Mount, X = 0.91%

Product form

Out of stock

$46.70 $51.37 inclGST Excl. VAT

        SKU: FE-LAX 100-NP

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        LEM LAX 100-NP Series Multi Range Closed Loop AC/DC Hall Effect Sensor

        Features

        • Bandwidth DC to 300kHz
        • Multi Range through pin selection
        • Closed loop transducer using Hall effect
        • Compact and versatile
        • PCB Mount
        • Insulated plastic case recognized according to UL 94-V0

        Advantages

        • Very good linearity
        • High accuracy
        • Low temperature drift
        • Wide frequency bandwidth
        • Very low insertion losses
        • High immunity to external interference
        • Current overload capability
        • Low power consumption

        Applications

        • AC variable speed drives and servo motor drives
        • Static converters for DC motor drives
        • Battery supplied applications
        • Uninterruptible Power Supplies (UPS)
        • Switched Mode Power Supplies (SMPS)
        • Power supplies for welding applications
        • Water Treatment Electronics
        Specification
        LEM Part Number LAX100-NP
        Technology Closed Loop Hall Effect
        Aperture No Aperture
        ROHS Yes
        Supply Voltage +/-12..15 VDC Bipolar, Isolated
        Load Current (RMS + DC) 16,25,33,50,100 Amp Multirange through jumper selection
        Measurement Range +/-160 Amp
        Output 50 mA
        Isolation 3.5 kV
        Bandwidth DC-300 kHz
        Mounting Style PCB Mount
        Operating Temperature Range -40°C / 85°C
        Accuracy 0.91%
        Termination Style Through Hole PCB
        Unit Weight 20g
        Factory Pack Quantity 25

        Datasheet
