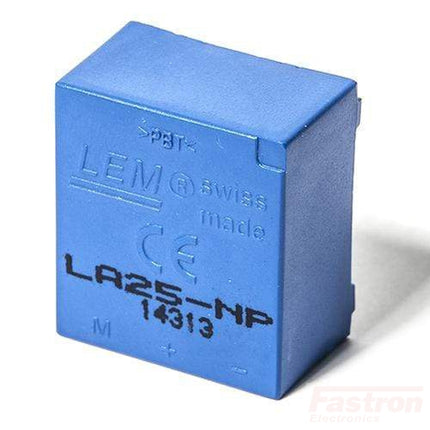

LA 25-NP, C/L Hall Effect Current Sensor, Multi Range 25 Amp, 25mA Output, PCB Mount, No Aperture
Rated 3.5/5 based on 11 customer reviews

LA 25-NP, C/L Hall Effect Current Sensor, Multi Range 25 Amp, 25mA Output, PCB Mount, No Aperture

  • Order within

Free Shipping for $300 Spend

Available: 77pcs in stock , more available 4-5 Weeks
$34.00
$37.40inclGST

Free Shipping for $300 Spend

Wishlist Compare

LEM LA Series Closed Loop AC/DC Hall Effect Current Sensor

Features

  • Bandwidth DC to 150kHz
  • Multi Range through pin selection
  • Closed loop transducer using Hall effect
  • Compact and versatile
  • PCB Mount
  • Insulated plastic case recognized according to UL 94-V0

Advantages

  • Very good linearity
  • High accuracy
  • Low temperature drift
  • Wide frequency bandwidth
  • Very low insertion losses
  • High immunity to external interference
  • Current overload capability
  • Low power consumption

Applications

  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications
  • Water Treatment Electronics

LEM LA Series Closed Loop AC/DC Hall Effect Current Sensor

Features

  • Bandwidth DC to 150kHz
  • Multi Range through pin selection
  • Closed loop transducer using Hall effect
  • Compact and versatile
  • PCB Mount
  • Insulated plastic case recognized according to UL 94-V0

Advantages

  • Very good linearity
  • High accuracy
  • Low temperature drift
  • Wide frequency bandwidth
  • Very low insertion losses
  • High immunity to external interference
  • Current overload capability
  • Low power consumption

Applications

  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications
  • Water Treatment Electronics
LEM Part Number LA25-NP
Technology Closed Loop Hall Effect
Aperture No Aperture
ROHS Yes
Supply Voltage +/-15 VDC Bipolar, Isolated
Load Current (RMS + DC) 5,6,8,12,25 Amp Multirange through pin selection
Measurement Range +/-36 Amp
Output 25 mA
Isolation 2.5 kV
Bandwidth DC-150 kHz
Mounting Style PCB Mount
Operating Temperature Range -40°C / 85°C
Accuracy 0.5%
Termination Style Through Hole PCB
Unit Weight 22g
Factory Pack Quantity 25
