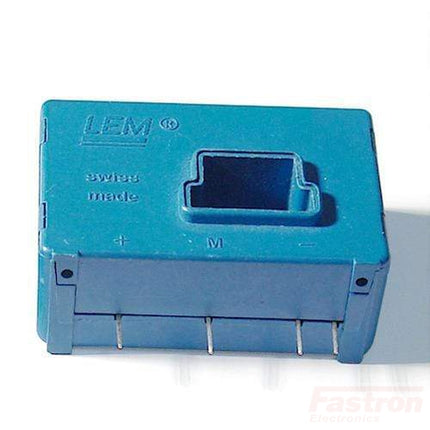

LA 125-P, C/L Hall Effect Current Sensor, 125 Amp, 125mA Output, +/-12..15V Supply, PCB Mount, X = 0.45%
Rated 3.5/5 based on 11 customer reviews

LA 125-P, C/L Hall Effect Current Sensor, 125 Amp, 125mA Output, +/-12..15V Supply, PCB Mount, X = 0.45%

  • Order within

Free Shipping for $300 Spend

Available: 59pcs in stock , more available 4-5 Weeks
$58.00
$63.80inclGST

Free Shipping for $300 Spend

Wishlist Compare

LEM LA Series Closed Loop AC/DC Hall Effect Sensor

Features

  • Bandwidth DC to 100kHz
  • Closed loop transducer using Hall effect
  • Compact and versatile
  • PCB Mounted with Strain Relief
  • Insulated plastic case recognized according to UL 94-V0

Advantages

  • Very good linearity
  • High accuracy
  • Low temperature drift
  • Wide frequency bandwidth
  • Very low insertion losses
  • High immunity to external interference
  • Current overload capability
  • Low power consumption

Applications

  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications
  • Water Treatment Electronics

LEM LA Series Closed Loop AC/DC Hall Effect Sensor

Features

  • Bandwidth DC to 100kHz
  • Closed loop transducer using Hall effect
  • Compact and versatile
  • PCB Mounted with Strain Relief
  • Insulated plastic case recognized according to UL 94-V0

Advantages

  • Very good linearity
  • High accuracy
  • Low temperature drift
  • Wide frequency bandwidth
  • Very low insertion losses
  • High immunity to external interference
  • Current overload capability
  • Low power consumption

Applications

  • AC variable speed drives and servo motor drives
  • Static converters for DC motor drives
  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Power supplies for welding applications
  • Water Treatment Electronics
LEM Part Number LA125-P
Technology Closed Loop Hall Effect
Aperture 13 x 11mm
ROHS Yes
Supply Voltage +/-12..15 VDC Bipolar, Isolated
Load Current (RMS + DC) 125 Amp
Measurement Range +/-200 Amp
Output 125 mA
Isolation 3 kV
Bandwidth DC-100 kHz
Mounting Style PCB Mount
Operating Temperature Range -10°C / 80°C
Accuracy 0.6%
Termination Style Through Hole PCB
Unit Weight 35g
Factory Pack Quantity 25
