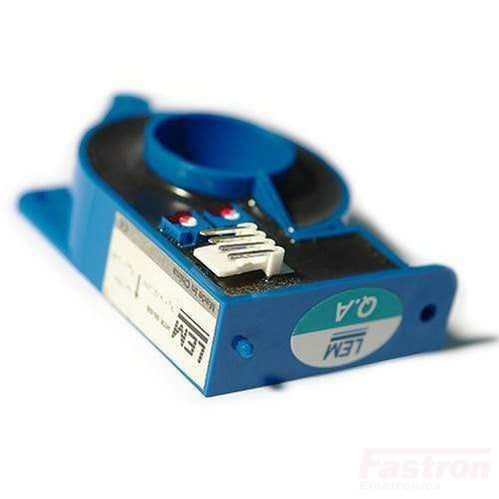

HTR 500-SB O/L Hall Effect Current Sensor, 500 Amp, +/-4V Output, Split Core 21mm Aperture, X = 2%

HTR 500-SB O/L Hall Effect Current Sensor, 500 Amp, +/-4V Output, Split Core 21mm Aperture, X = 2%

Product form

Out of stock

$301.00 $331.10 inclGST Excl. VAT

        SKU: FE-HTR 500-SB

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        LEM HTR 500-SB Open Loop Hall Effect Current Sensor, 500 Amp, +/-4V Output, Split Core 21mm Aperture, X = 2%

        Features

        • Bandwidth DC to 10kHz
        • Open loop transducer using Hall effect
        • Compact and versatile
        • Panel mounting-Horizontal or Vertical
        • Insulated plastic case recognized according to UL 94-V0

        Advantages

        • Very good linearity
        • Very good accuracy
        • Low temperature drift
        • Wide frequency bandwidth
        • Very low insertion losses
        • High immunity to external interference
        • Current overload capability
        • Low power consumption
        • Wide dynamic range, 50 to 500 A in one package.

        Applications

        • AC variable speed drives and servo motor drives
        • Static converters for DC motor drives
        • Battery supplied applications
        • Uninterruptible Power Supplies (UPS)
        • Switched Mode Power Supplies (SMPS)
        • Power supplies for welding applications.
        Specification
        LEM Part Number HTR 500-SB
        Technology Split Core Open Loop Hall Effect
        Aperture ø21mm
        ROHS Yes
        Supply Voltage +/-12..15 VDC Bipolar, Isolated
        Load Current (RMS + DC) 500 Amp
        Measurement Range +/-1000 Amp
        Output +/-4 V
        Isolation 4 kV
        Bandwidth DC-10 kHz
        Mounting Style Panel Mount
        Operating Temperature Range -10°C / 70°C
        Accuracy 2%
        Termination Style Molex 5046-04A/AG
        Unit Weight 80g
        Factory Pack Quantity 10

        Datasheet
        Application Notes
