HAZ 6000-SBI, O/L Hall Effect Current Sensor, +/-20mA Instant Output, +/-15VDC Supply

HAZ 6000-SBI, O/L Hall Effect Current Sensor, +/-20mA Instant Output, +/-15VDC Supply

Available: Backorder
$945.00+GST
Successful pre-order.Thanks for contacting us!
Wishlist Compare

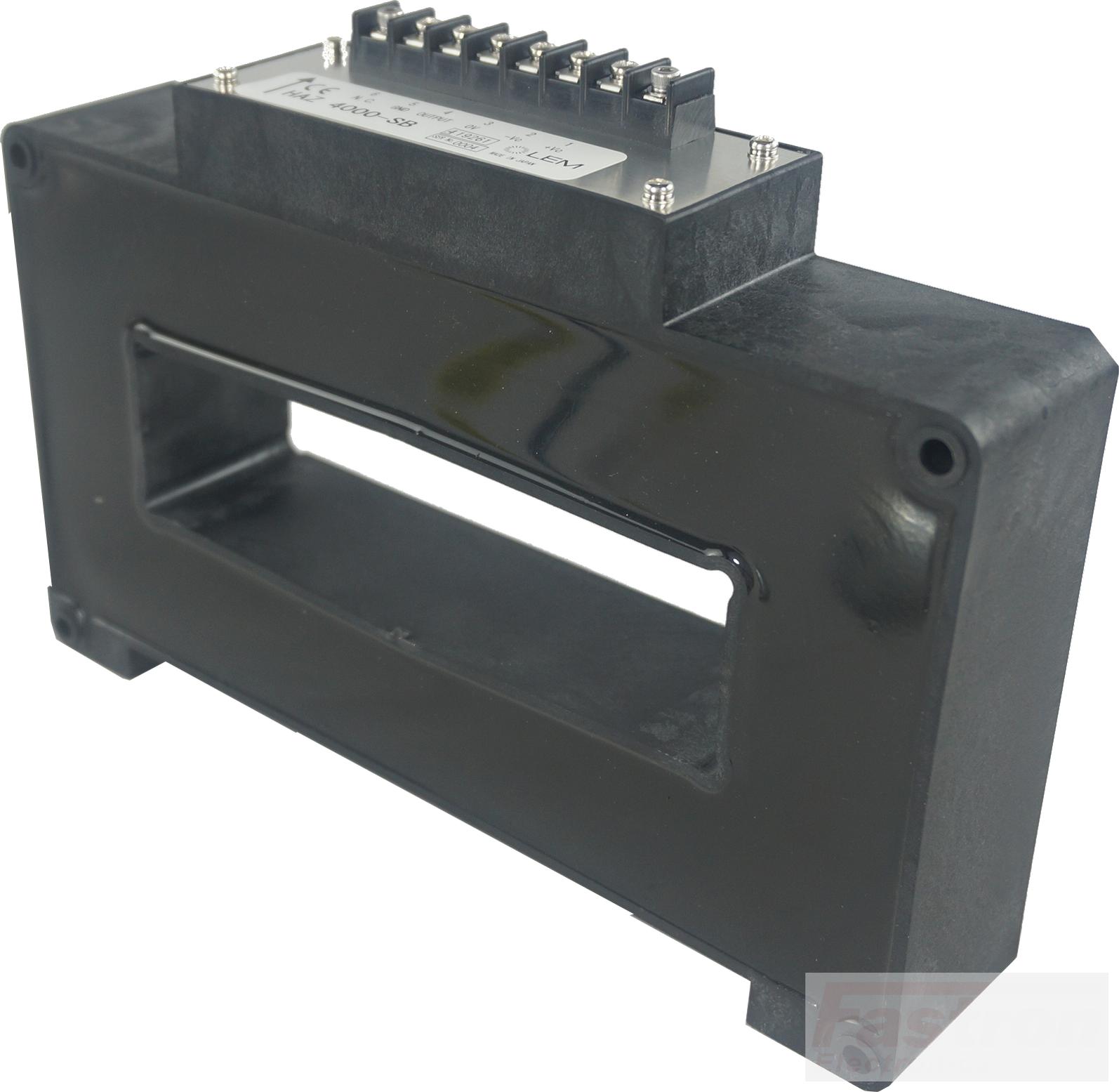

LEM HAZ Series Open Loop Hall Effect Current Transducer

For the electronic measurement of currents: DC, AC, pulsed, mixed, with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit).

Features

  • Instantaneous output version +/-10V, +/-20mA
  • True RMS output versions 4-20mA, 0-10V putput
  • Hall effect measuring principle
  • Galvanic isolation between primary and secondary circuit
  • Instantaneous voltage output
  • Isolation voltage 17kV Rms /50 Hz /1min
  • Low power consumption
  • Package in PBT meeting UL 94-V0
  • Instantaneous voltage output

Advantages

  • Easy installation
  • Small size and space savings
  • Only one design for wide current ratings range
  • High immunity against external interference

Applications

  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Power supplies for welding and telecom applications

Application domain

  • Industrial
  • Traction

LEM HAZ Series Open Loop Hall Effect Current Transducer

For the electronic measurement of currents: DC, AC, pulsed, mixed, with a galvanic isolation between the primary circuit (high power) and the secondary circuit (electronic circuit).

Features

  • Instantaneous output version +/-10V, +/-20mA
  • True RMS output versions 4-20mA, 0-10V putput
  • Hall effect measuring principle
  • Galvanic isolation between primary and secondary circuit
  • Instantaneous voltage output
  • Isolation voltage 17kV Rms /50 Hz /1min
  • Low power consumption
  • Package in PBT meeting UL 94-V0
  • Instantaneous voltage output

Advantages

  • Easy installation
  • Small size and space savings
  • Only one design for wide current ratings range
  • High immunity against external interference

Applications

  • Battery supplied applications
  • Uninterruptible Power Supplies (UPS)
  • Power supplies for welding and telecom applications

Application domain

  • Industrial
  • Traction
LEM Part Number HAZ 6000-SBI
Technology Open Loop Hall Effect
ROHS Yes
Supply Voltage +/- 15VDC
Load Current (RMS + DC) 4000 Amp
Overload Rating 30000 At
Output +/-20 mA Instantaneous
Isolation 17kV (AC, 50Hz, 1 min)
Bandwidth DC-3kHz
Mounting Style Busbar Mount
Operating Temperature Range -25°C / 85°C
Accuracy 1%
Termination Style F2023A (FUJICON)
Unit Weight 6kg
Factory Pack Qty 2
