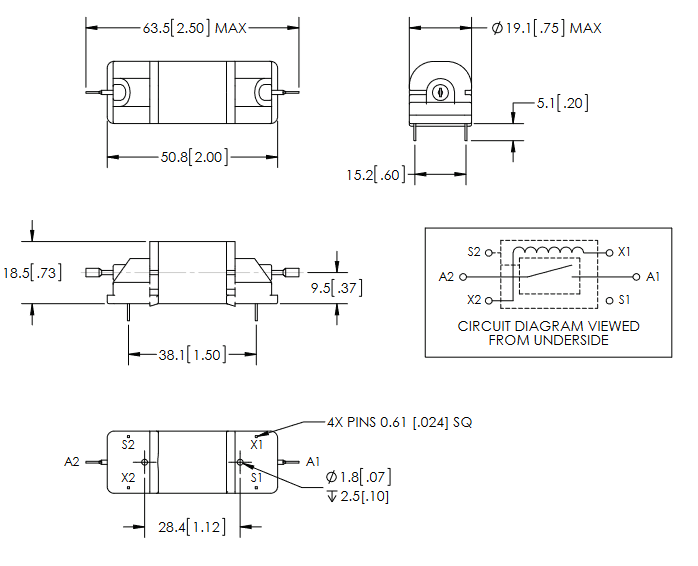

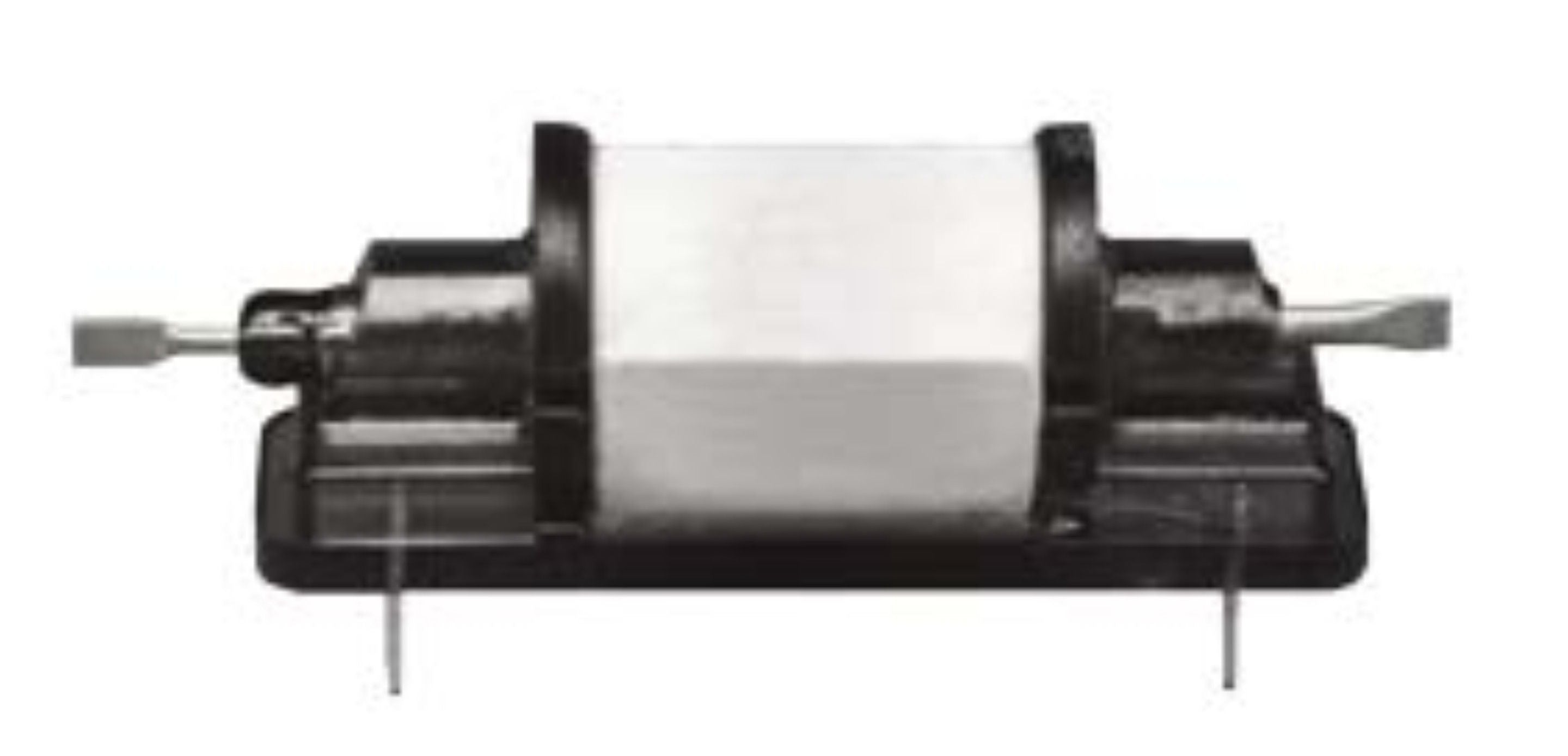

GR6HBA318, HV Relay with RF Screen, 7kVDC, 10Amp DC or 6 Amp RMS(<30Mhz), SPDT-NO, 24VDC Coil, 100,000,000 Cycles, Solder Terminals

Gigavac Part Number	GR6HBA318
Main Contact Type	SPDT-NO
Auxiliary Contact Type	N/A
Coil Voltage	24VDC
Load Current	10 AmpDC / 6 Amp RMS (up to 30Mhz)
Mechanical Life @ 0 Amp	100,000,000 Operations
Impulse Withstand	7kV rms
Control Input Terminals	Solder Tabs
Special Feature	N/A
Mounting Style	Panel Mount (M2)
Load Voltage Range	7kVDC (up to 30Mhz)
Standards
Termination Style	Screw
Unit Weight	24g
Factory Pack Qty	1



• Product Datasheet
