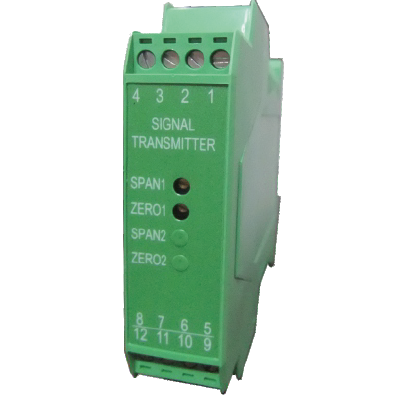

GAT-D-B, Multirange DIP Switch Selectable Signal Isolator/Conditioner, 22-60VDC
Rated 3.5/5 based on 11 customer reviews

GAT-D-B, Multirange DIP Switch Selectable Signal Isolator/Conditioner, 22-60VDC

  • Order within

Free Shipping for $300 Spend

Available: 5pcs in stock , more available in 1-2 Weeks
$179.00
$196.90inclGST

Free Shipping for $300 Spend

Wishlist Compare

Alish GAT-D-B Multirange Input/Output Signal Conditioner or Transmitter

  • Adjustable Zero and Span Setting
  • 250mS Response Time
  • PC 94 UL V0
  • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type)
  • Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space

    Alish GAT-D-B Multirange Input/Output Signal Conditioner or Transmitter

    • Adjustable Zero and Span Setting
    • 250mS Response Time
    • PC 94 UL V0
    • Input signals can be converted to insulated 4 to 20 mA DC output (for direct current output type)
    • Each unit needs just 22.5 x 114 mm depth DIN Rail cabinet space
      Alish Part Number GAT-D-B
      Control Output (Multirange) 0-5V,0-10V,0-10mA,0-20mA,4-20mA
      Input (Mutirange) 0-50mV,0-5V,1-5V,0-10V,0-1mA,0-20mA,4-20mA
      Over Range x 1.5
      Operating Temperature 0 - 60°C
      Load Voltage 22 - 60VDC
      Span Adjustment Range +/-10%
      Zero Adjustment Range  +/-5%
      Termination Style Screw
      Mounting Style  DIN Rail Mount
      Case Material PC - UL 94 V0
      Weight 170g
      Factory Pack Qty 1
