FRV 8-06/460, 220-460VAC L-L Voltage Monitoring Relay, 3 Phase Over/Under Voltage Detection, 1 x CO SPDT 8 Amp Contact, Fixed 2s Timer Delay, Adjustable Upper and Lower Voltage Limits, Adjustable Asymmetry
Free Aus Post Shipping for $300 Spend
- Description
- Specification
- Datasheet
- Application Notes
- About Fastron
- Reviews

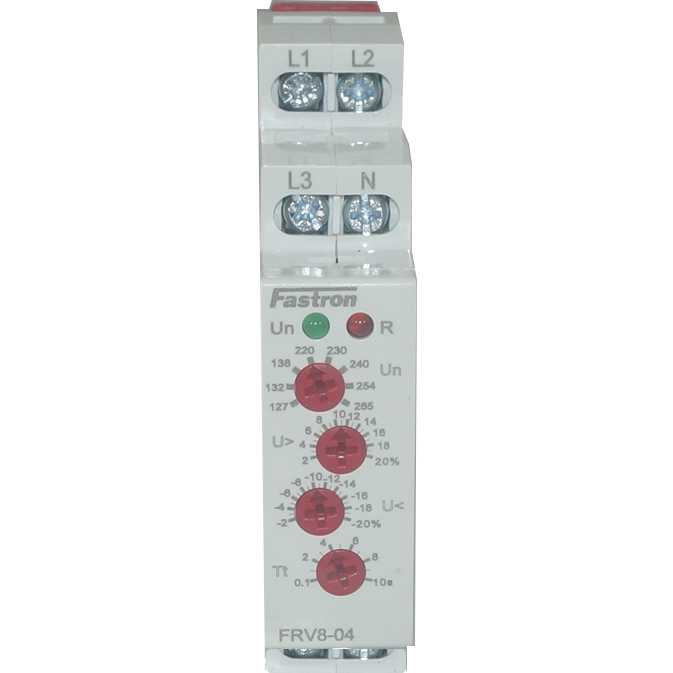

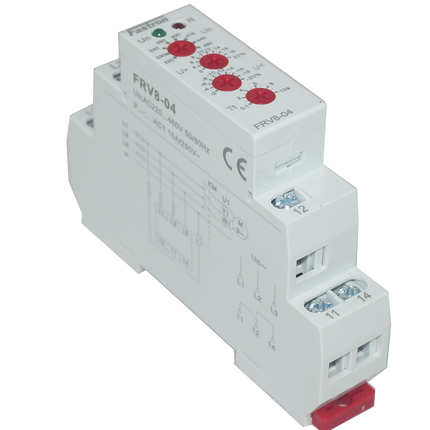

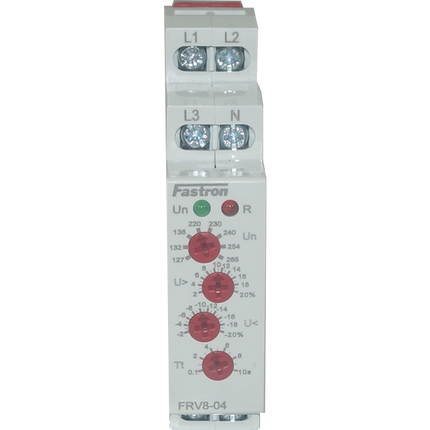

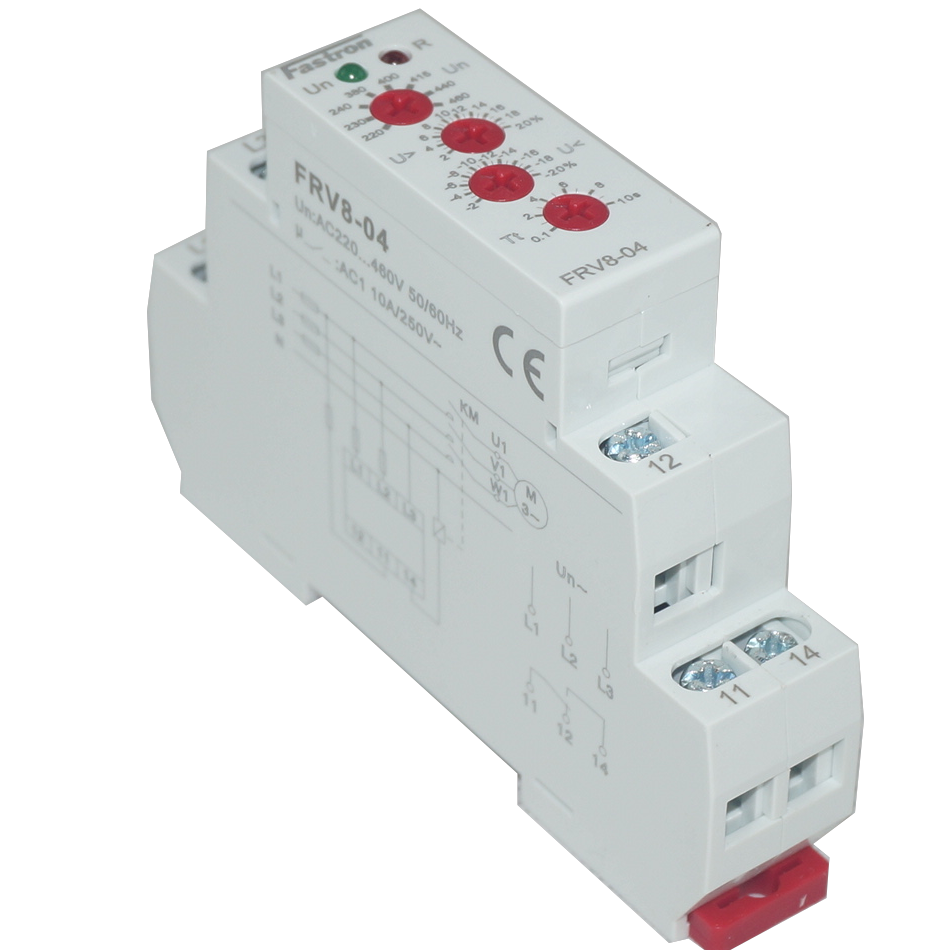

Fastron FRV 8-06/460, 220-460VAC L-L Voltage Monitoring Relay, 3 Phase Over/Under Voltage Detection, 1 x CO SPDT 8 Amp Contact, Fixed 2s Timer Delay, Adjustable Upper and Lower Voltage Limits, Adjustable Asymmetry
FRV 8 Series serves to monitor voltage, phase failure and sequence in switchboards, protection of devices in 3-phase mains
Features
- Upper and lower level of monitoring voltage
- Asymmetry
- Adjustable time delay eliminates short voltage peaks and failures in the main
- Supply is done from monitored voltage
- Faulty state is indicated by red LED and by opening of output relay contact
- Output contact 1 x Changeover / SPDT 10 A /250 V AC1
- In case supply voltage falls below 60 %Un (U lower level) relay off immediately opens without delay
- FRV 8-04/460 - supply from all phases which means that relay is functional also in case when one phase is faulty
- Variant FRV 8-06/265 - supply L1-N, means that relay monitors also failure of neutral wire
- 1-MODULE, DIN rail mounting
Technical Data |
FRV 8 |
Supply and measuring |
L1, L2, L3 (220,230,240,380,400,415,440,460VAC) |
Supply terminals |
L1, L2, L3 |
Supply/measured voltage |
3 x 220-460 V / 50 Hz |
Level Umax |
105 - 125 % Un |
Level Umin |
75 - 95 % Un |
Burden |
max. 2 VA |
Hysteresis |
2 % |
Max. permanent overload |
AC 3 x 460 V |
Peak overload <1ms |
AC 3 x 500 V |
Time delay T1 |
max. 500 ms |
Time delay T2 |
adjustable 0.1-10 s |
Output |
|
Number of contacts |
1 x changeover/ SPDT (AgNi / Silver Alloy) |
Current rating |
10 A / AC1 |
Breaking capacity |
2500 VA / AC1, 240 W / DC |
Inrush current |
10 A |
Switching voltage |
250 V AC1 / 24 V DC |
Min. breaking capacity DC |
500 mW |
Indication of state |
red LED |
Mechanical life |
1 x 107 |
Electrical life (AC1) |
1 x 105 |
Other information |
|
Operating temperature |
-20 ... +55 °C |
Storage temperature |
-30 ... +70 °C |
Electrical strength |
4 kV (supply - output) |
Operating position |
any |
Mounting |
DIN rail EN 60715 |
Protection degree |
IP 40 from front panel / IP 10 terminals |
Overvoltage cathegory |
III. |
Pollution degree |
2 |
Max. cable size (mm )2 |
solid wire max. 2x2.5 or 1x4 ; with sleeve max. 1x2.5 or 2x1.5 |
Dimensions |
90 x 17,6 x 64 mm |
Weight |
69 g |
Standards |
EN 60255-6, EN 61010-1, RoHS, CE |
For items in our catalogue which are not listed online please Contact Us for Possible Replacement

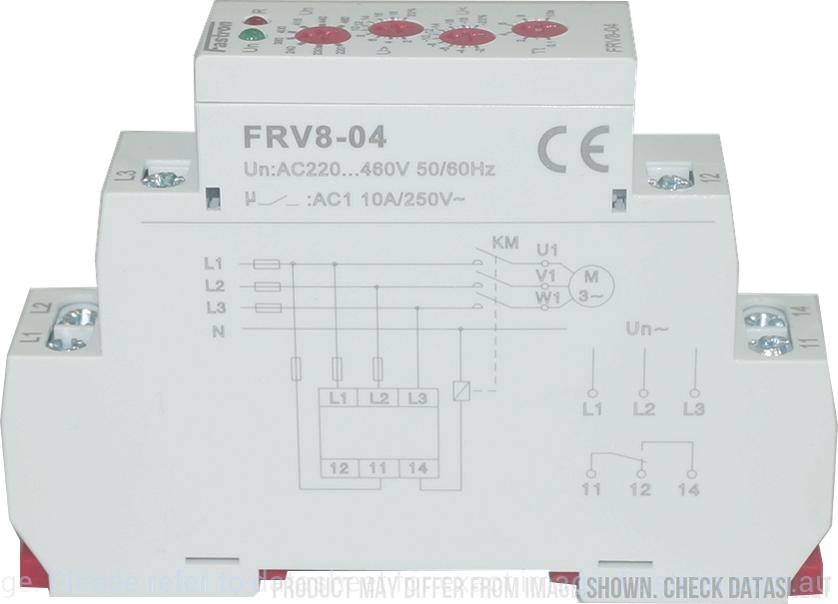

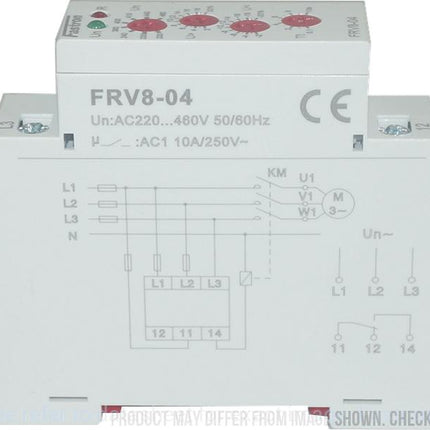

Relay in 3-phase main monitors size of phase voltage. It is possible to set two independent voltage levels and thus it is possible to set two independent voltage levels and monitor e.g. undervoltage and overvoltage independently. In normal state when voltage is within set levels, output relay is closed and red LED shines.
In case voltage exceeds or falls below the set levels, output relay opens and red LED shines ( LED indicates faulty state – flashes when timing). In case supply voltage falls below 60 % Un (UOFF lower level)relay immediately opens without delay and faulty state is indicated by red LED.In case timing is in progress and faulty state is indicated, timing is immediately stopped.
