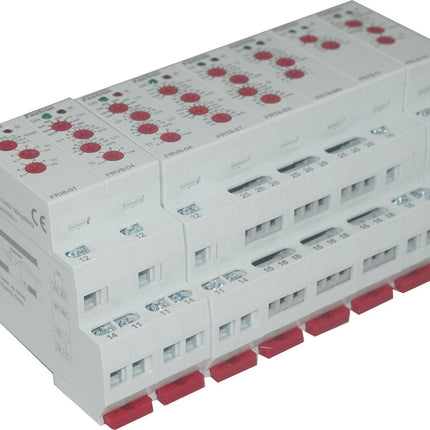

FRV 8-02/AD240, 50 to 270VAC Voltage Monitoring Relay, Single Phase Over/Under Voltage Detection, 1 x CO SPDT 10 Amp Contact, Adjustable Timer Delay, Adjustable Upper and Lower Voltage Limits

FRV 8-02/AD240, 50 to 270VAC Voltage Monitoring Relay, Single Phase Over/Under Voltage Detection, 1 x CO SPDT 10 Amp Contact, Adjustable Timer Delay, Adjustable Upper and Lower Voltage Limits

Product form
Free pickup in our shop(s)

49 pcs in stock

$55.00 $60.50 inclGST Excl. VAT

        SKU: FE-FRV 8-02/AD240

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Fastron FRV 8-02/AD240, 50 to 270VAC Voltage Monitoring Relay, Single Phase Over/Under Voltage Detection, 1 x CO SPDT 10 Amp Contact, Adjustable Timer Delay, Adjustable Upper and Lower Voltage Limits

        FRV 8 Series serves to monitor under/over voltage in switchboards, protection of devices in single phase 2 wire mains

        Features

        • Upper and lower level of monitoring voltage
        • Adjustable time delay eliminates short voltage peaks and failures in the main
        • Supply is done from monitored voltage
        • Faulty state is indicated by red LED and by opening of output relay contact
        • Output contact 1 x Changeover / SPDT 10 A /250 V AC1
        • In case supply voltage falls below 60 %Un (U lower level) relay off immediately opens without delay
        • 1-MODULE, DIN rail mounting
        Specification

        Technical Data

        FRV 8-02

        Supply and measuring

        50-270VAC

        Measured voltage

        65-260VAC / 50 Hz

        Level Umax

        112.5 % Un

        Level Umin

        83 % Un

        Burden

        max. 2 VA

        Hysteresis

        2 %

        Max. permanent overload

        270 VAC/DC

        Time delay T1

        max. 500 ms

        Time delay T2

        adjustable 0.1-10 s

        Output

        Number of contacts

        1 x changeover/ SPDT (AgNi / Silver Alloy)

        Current rating

        10 A / AC1

        Breaking capacity

        2500 VA / AC1, 240 W / DC

        Inrush current

        10 A

        Switching voltage

        250 V AC1 / 24 V DC

        Min. breaking capacity DC

        500 mW

        Indication of state

        red LED

        Mechanical life

        1 x 107

        Electrical life (AC1)

        1 x 105

        Other information

        Operating temperature

        -20 ... +55 °C

        Storage temperature

        -30 ... +70 °C

        Electrical strength

        4 kV (supply - output)

        Operating position

        any

        Mounting

        DIN rail EN 60715

        Protection degree

        IP 40 from front panel / IP 10 terminals

        Overvoltage cathegory

        III.

        Pollution degree

        2

        Max. cable size (mm )2

        solid wire max. 2x2.5 or 1x4 ; with sleeve max. 1x2.5 or 2x1.5

        Dimensions

        90 x 17,6 x 64 mm

        Weight

        69 g

        Standards

        EN 60255-6, EN 61010-1, RoHS, CE, CE


        Datasheet

        For items in our catalogue which are not listed online please Contact Us for Possible Replacement

        Application Notes

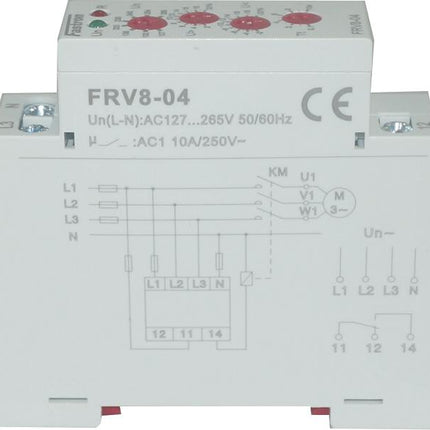

        Relay in 3-phase main monitors size of phase voltage. It is possible to set two independent voltage levels and thus it is possible to set two independent voltage levels and monitor e.g. undervoltage and overvoltage independently. In normal state when voltage is within set levels, output relay is closed and red LED shines.

        In case voltage exceeds or falls below the set levels, output relay opens and red LED shines ( LED indicates faulty state – flashes when timing). In case supply voltage falls below 60 % Un (UOFF lower level)relay immediately opens without delay and faulty state is indicated by red LED.In case timing is in progress and faulty state is indicated, timing is immediately stopped.

        Read more

        Specifications

        • Weight: 200gr
        • Usage: Indoor & outdoor
