Pt100 Class A RTD Class A, or Class B with Transmitter, Various Probe Lengths and Diameter w/ LARGE Terminal Head, -50 to 400 Deg C

Fastron Part Number	FRTD Large Terminal Series FRTD-X-XXX-XXX
Sensor Type	Pt100 Class A RTD /With Transmitter Class B
No of Wires	3
Probe Length	Various
Sheath Thickness	3/6mm (or Custom)
Sheath Material	SS 304 Stainless Steel
Accuracy	Class A/Class B with Transmitter
Approvals	CE, ANSI, ROHS

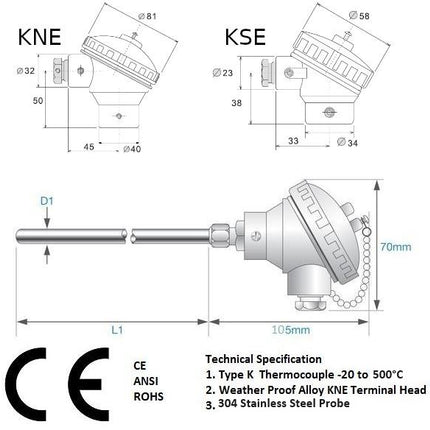

Cable length	Large Terminal Head (105 x 70mm)

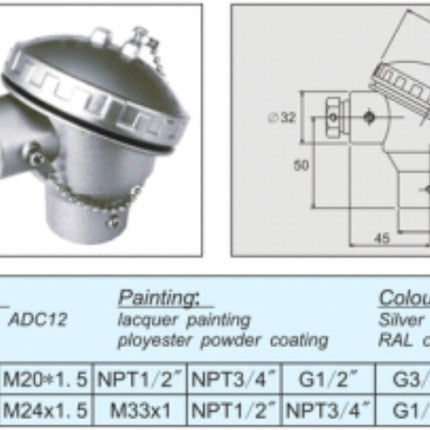

Terminal Head Type	LargePowder Coated Die Cast Alloy (Weather Proof)
Temperature Range	-50 to 400 Deg C
Special Feature	Large Terminal Head
Mounting Style	BSP Bayonet or Flange Fitting Recommended
Weight	470-700g
Factory Pack Qty	1

• Datasheet
