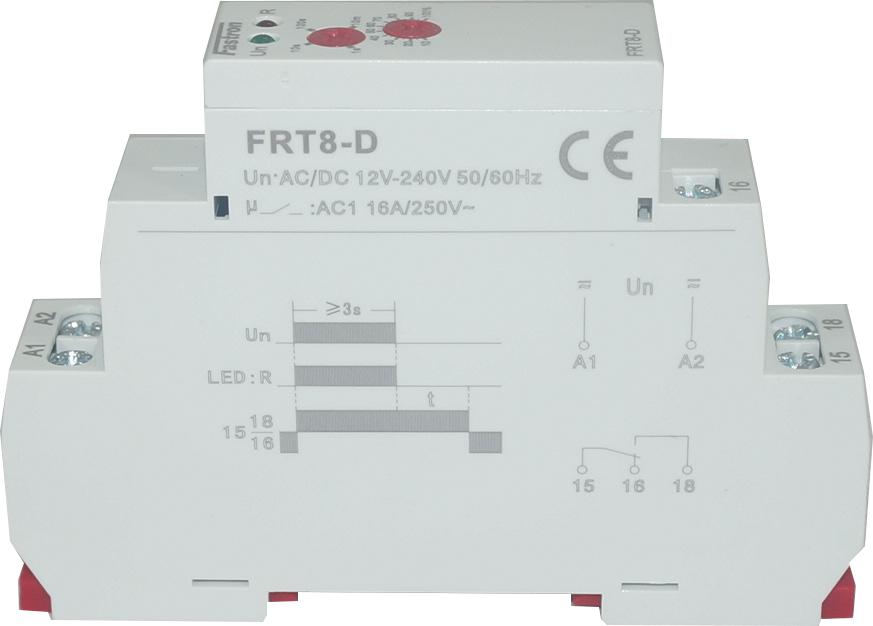

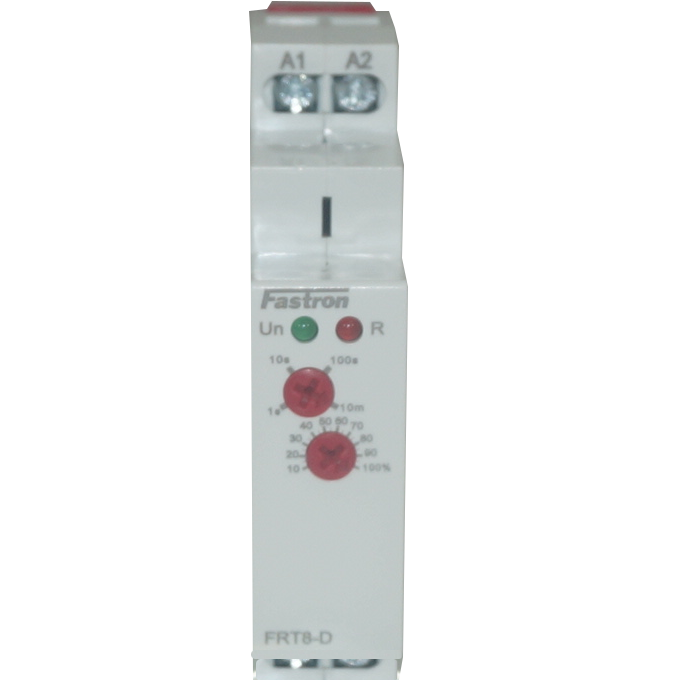

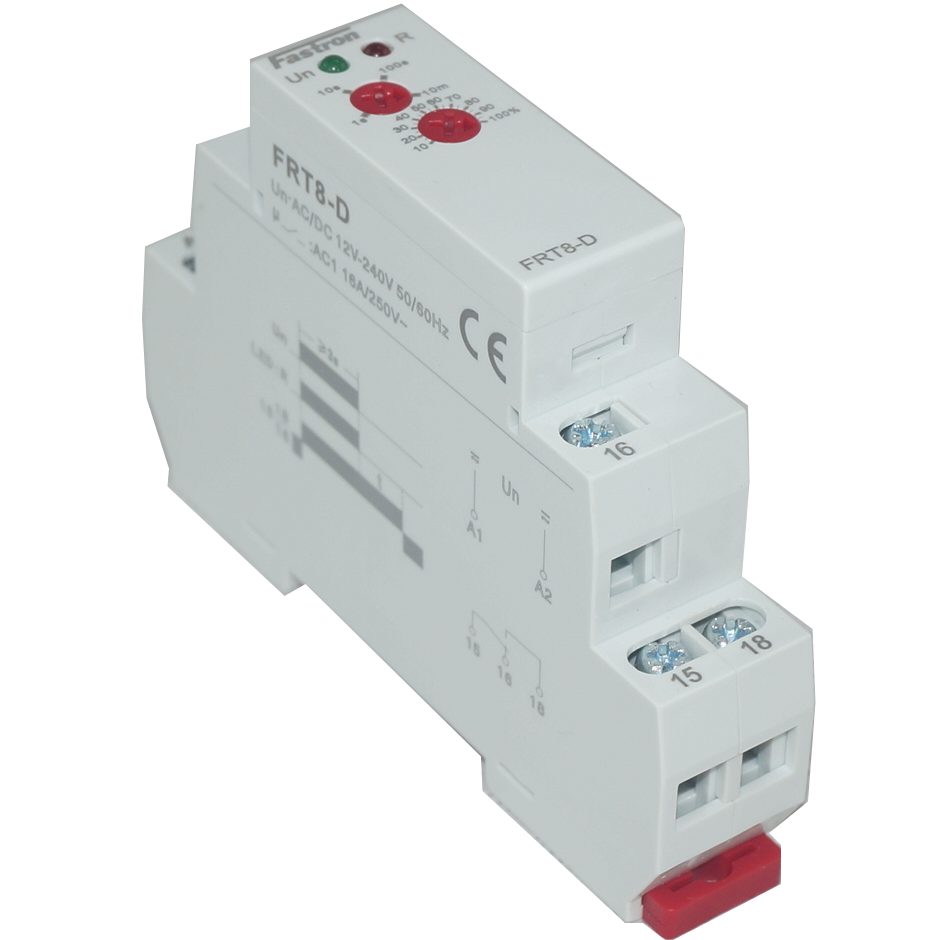

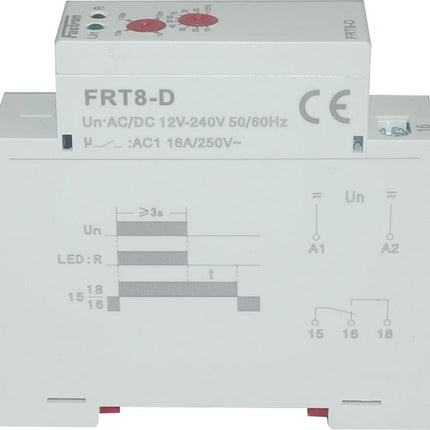

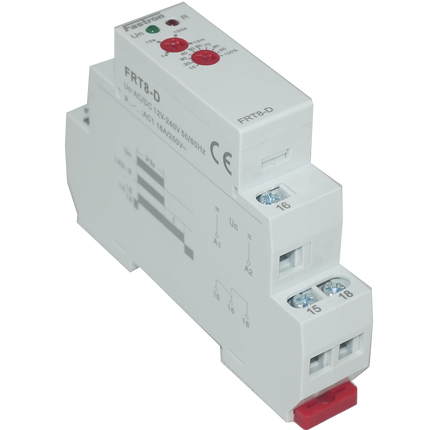

FRT8-D/W240, Delay Off Timer without Supply Voltage 12-240 V AC/DC, 0.1s - 10 Min, 1 x SPDT 16 Amp

FRT8-D/W240, Delay Off Timer without Supply Voltage 12-240 V AC/DC, 0.1s - 10 Min, 1 x SPDT 16 Amp

Product form
Free pickup in our shop(s)

10 pcs in stock

$62.00 $68.20 inclGST Excl. VAT

        SKU: FE-FRT8-D/W240

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Fastron FRT8-D/W240, Delay Off Timer without Supply Voltage 12-240 V AC/DC, 0.1s - 10 Min, 1 x SPDT 16 Amp

        Features :

        • Multi-range (0.1s - 10min)
        • Multi-voltage 12 →240 V AC/DC
        • LED status indicator
        • Possibility of external load connection in parallel to the control input
        • Dely Off Energisation
        • No trigger voltage required
            Specification
            Fastron Part Number FRT8-D/W240
            Function Delay TImer Without Supply Voltage
            Nominal Voltage 12 → 240 V AC/DC
            Digital Output 2 x C/O (SPDT) (Changeover -Single Pole), 250VAC/DC @ 16 Amp
            Min Breaking Current 10mA/12VDC
            Timing Ranges Selectable 1s - 10 Days
            Minimum Pulse Duration 30ms/100ms with load
            Repeatability 0.5%
            Reset Time 120ms
            Isolation 4kV
            Repetition Accuracy 0.5%
            Threshold Adjustment Range 10 → 100 % of the range
            Termination Style Screw
            Weight 80g
            Factory Pack Qty 1
            Certification CE, RoHS
            Over Voltage Category 3 in accordance with IEC/EN 60664-1
            Pollution Degree 2 in accordance with IEC/EN 61131-2
            Protection rating IP40 (Front), IP20 (Rear)
            Mechanical Resistance

            Immunity to vibrations IEC/EN 60068-2-6, test Fc

            Immunity to shock IEC/EN 60068-2-27, test Ea
            Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
            Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
            Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22



            Datasheet
