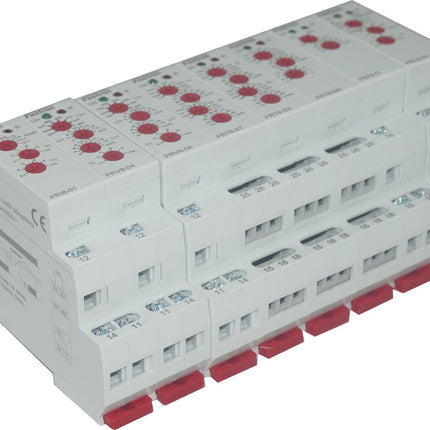

FRL8-02, Liquid Level Control Relay, 240VAC or 24VAC/DC Aux Supply 16 Amp changeover/SPDT, 1 or 2 Level Control

FRL8-02, Liquid Level Control Relay, 240VAC or 24VAC/DC Aux Supply 16 Amp changeover/SPDT, 1 or 2 Level Control

Product form
Free pickup in our shop(s)

50 pcs in stock

$78.00 $85.80 inclGST Excl. VAT

        SKU: FE-FRL8-02

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

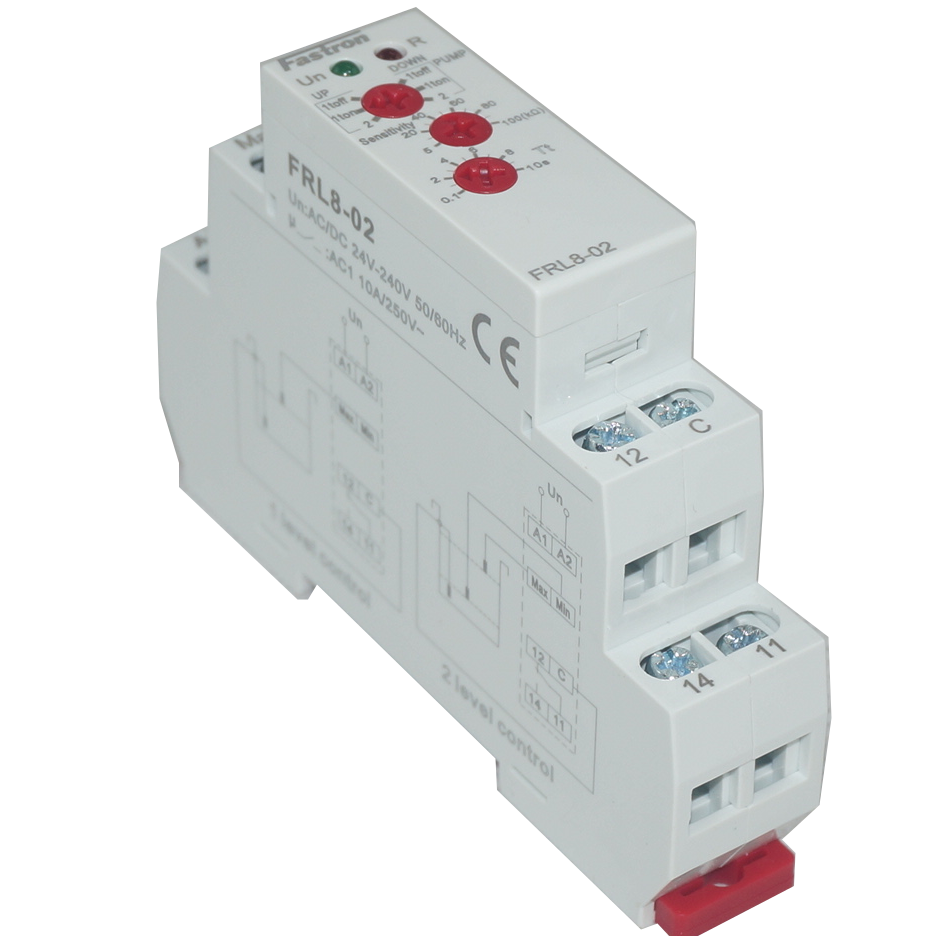

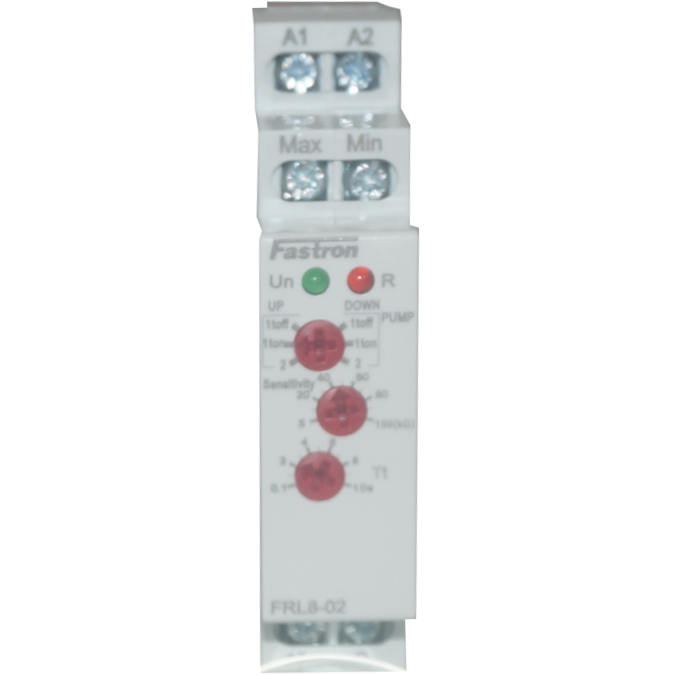

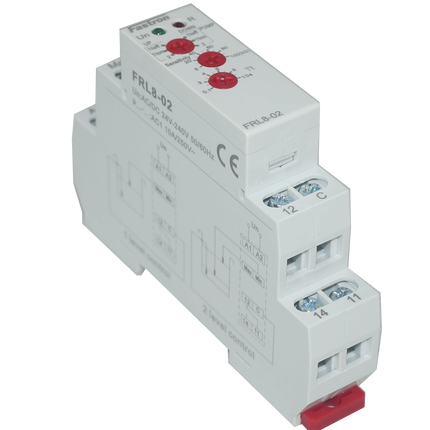

        Fastron Electronics FRL8-02, Liquid Level Control Relay, 240VAC or 24VAC/DC Aux Supply 16 Amp changeover/SPDT, 1 or 2 Level Control

        Level Switch, 110/240VAC or 24VAC/DC Aux Supply 1 x 16 Amp changeover/SPDT (AgNi / Silver Alloy) Relay

        Features :

        • 1. one-level switch of conductive liquids ( by connecting H and D)
        • 2. two-level switch of conductive liquids ! One-state device monitors one level, two-state device monitors two levels (switches on one level and switches off on another level)
        • Choice of function PUMP UP, PUMP DOWN
        • Adjustable time delay on the output (0.5 - 10 s)
        • Sensitivity adjustable by a potentiometer (5-100 kÙ)
        • Measuring frequency 10Hz prevents polarization of liquid and raising oxidation of measuring probes
        • Galvanically separated supply voltage UNI 24.. 240 VAC/DC
        • Output contact 1xchangeover/SPDT 8A/250V AC1
        • 1-module type, mounting onto a DIN rail


        Specification

        Fastron Part Number

        FRL8-02

        Voltage Range

        110/240VAC or 24VAC/DC

        Sensitivity (Input resistance)

        5kOhm to 100kOhm

        Electrode Voltage

        3.5 max

        Trip Adjustment

        Potentiometer

        Settign Accuracy

        5 %

        Burden

        max. 12 VA

        Repeatability

        1 %

        Temperature Drift

        0.1%/°C

        Peak Overload (10s)

        100 Amp

        Time delay T1

        max. 400 ms

        Time delay T2

        adjustable 0.1-10 s

        Control Type

         1 or 2 level

        Number of contacts

        1 x changeover/ SPDT (AgNi / Silver Alloy)

        Current rating

        1 x 16 A / AC1

        Breaking capacity

        2500 VA / AC1, 250 W / DC

        Inrush current (3s)

        10 A

        Switching voltage

        250 V AC1 / 24 V DC

        Min. breaking capacity DC

        500 mW

        Indication of state

        red LED

        Mechanical life

        1 x 107

        Electrical life (AC1)

        1 x 105

        Control Type

         1 or 2 Level Control

        Operating temperature

        -20 ... +55 °C

        Storage temperature

        -30 ... +70 °C

        Electrical strength

        4 kV (supply - output)

        Operating position

        any

        Mounting

        DIN rail EN 60715

        Protection degree

        IP 40 from front panel / IP 10 terminals

        Overvoltage category

        III.

        Pollution degree

        2

        Max. cable size (mm )2

        solid wire max. 2x2.5 or 1x4 ; with sleeve max. 1x2.5 or 2x1.5

        Dimensions

        90 x 17,6 x 64 mm

        Weight

        109 g

        Standards

        EN 60255-6, EN 61010-1


        Datasheet

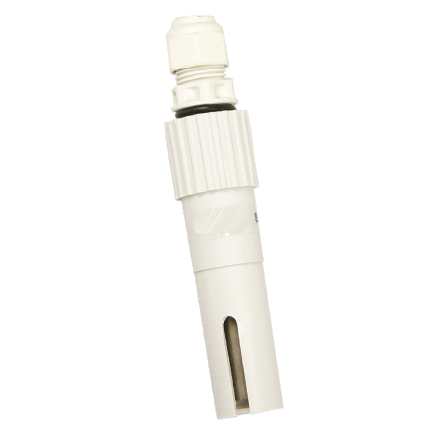

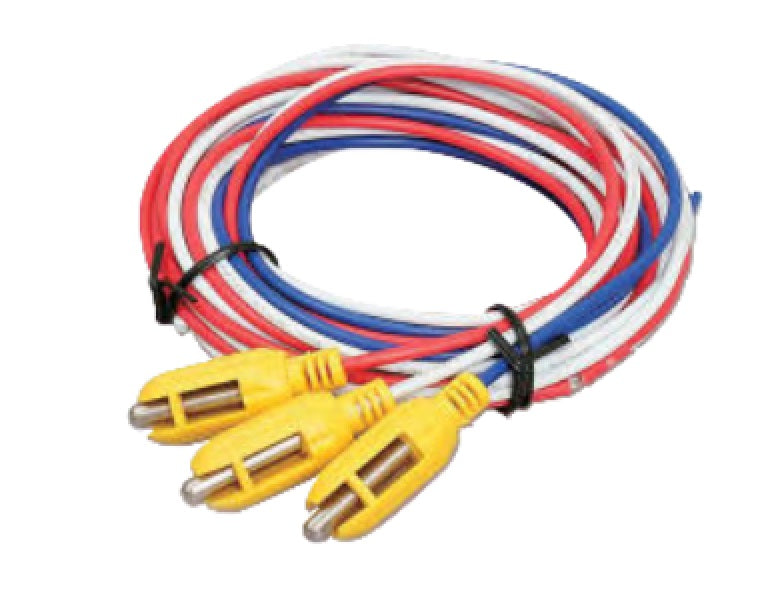

        Sensors for use with
