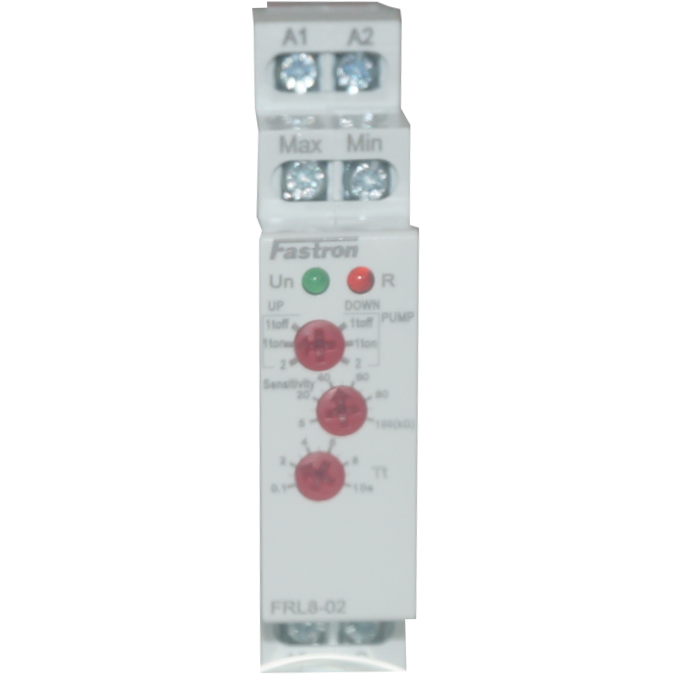

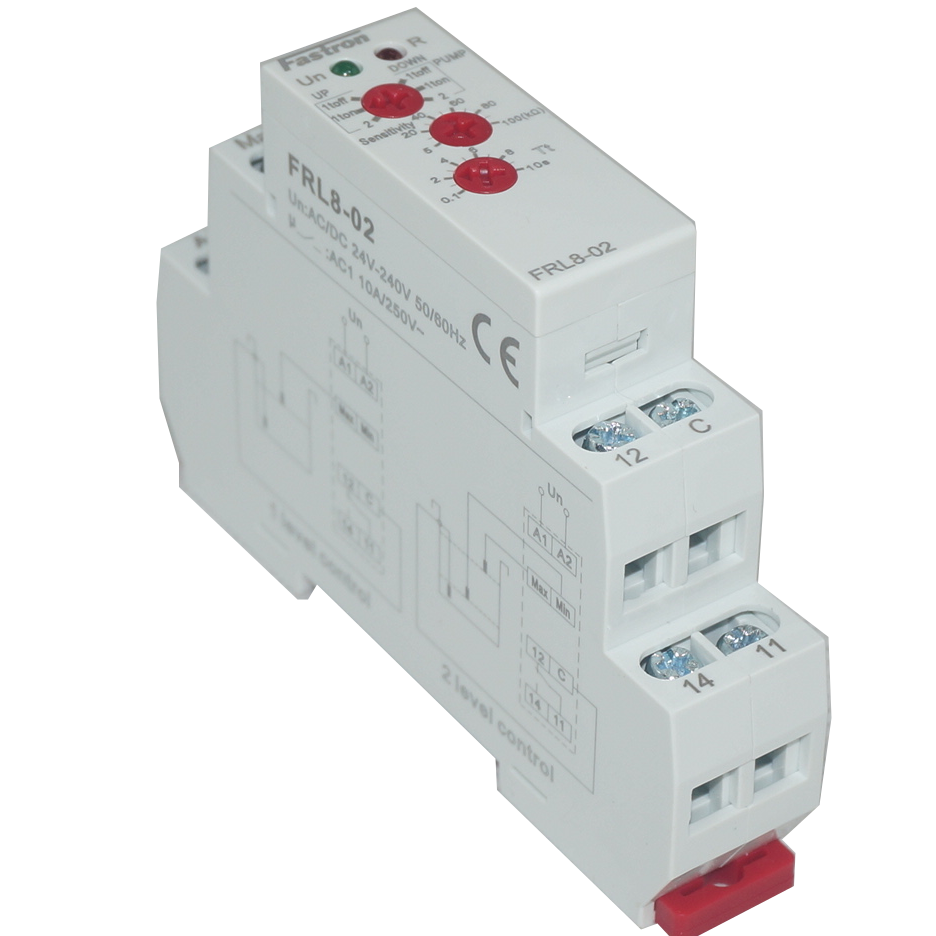

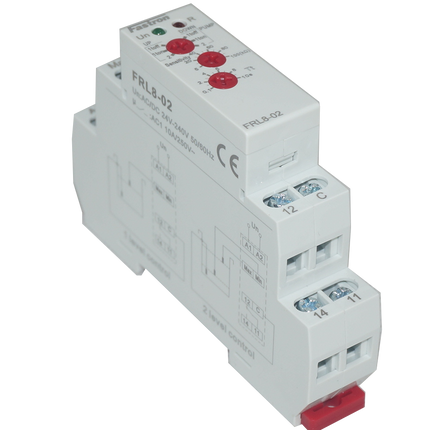

Fastron Part Number	FRL8-01
Voltage Range	110/240VAC or 24VAC/DC
Sensitivity (Input resistance)	5kOhm to 100kOhm
Electrode Voltage	3.5 max
Trip Adjustment	Potentiometer
Setting Accuracy	5 %
Burden	max. 12 VA
Repeatability	1 %
Temperature Drift	0.1%/°C
Peak Overload (10s)	100 Amp
Time delay T1	max. 400 ms
Time delay T2	adjustable 0.1-10 s
Control Type	2 Level
Number of contacts	1 x changeover/ SPDT (AgNi / Silver Alloy)
Current rating	1 x 16 A / AC1
Breaking capacity	2500 VA / AC1, 250 W / DC
Inrush current (3s)	10 A
Switching voltage	250 V AC1 / 24 V DC
Min. breaking capacity DC	500 mW
Indication of state	red LED
Mechanical life	1 x 107
Electrical life (AC1)	1 x 105
Other information
Operating temperature	-20 ... +55 °C
Storage temperature	-30 ... +70 °C
Electrical strength	4 kV (supply - output)
Operating position	any
Mounting	DIN rail EN 60715
Protection degree	IP 40 from front panel / IP 10 terminals
Overvoltage cathegory	III.
Pollution degree	2
Max. cable size (mm )2	solid wire max. 2x2.5 or 1x4 ; with sleeve max. 1x2.5 or 2x1.5
Dimensions	90 x 17,6 x 64 mm
Weight	109 g
Standards	EN 60255-6, EN 61010-1
