FRI8-05/A, Current Monitoring Relay AC 2-20 Amp, Adjustable Range, 9mm Aperture Universal 24-240VAC 24VDC

FRI8-05/A, Current Monitoring Relay AC 2-20 Amp, Adjustable Range, 9mm Aperture Universal 24-240VAC 24VDC

Product form

Out of stock

$84.50 $92.95 inclGST Excl. VAT

        SKU: FE-FRI 8-05/A

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

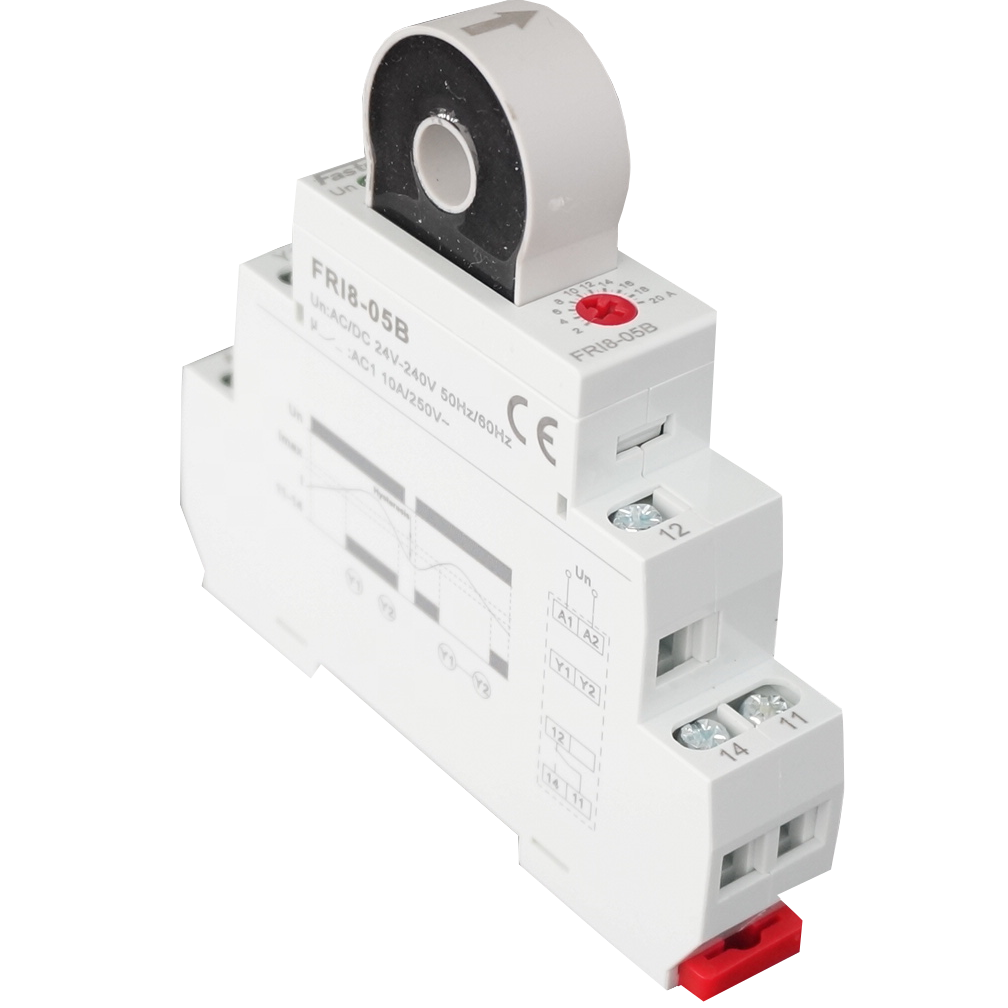

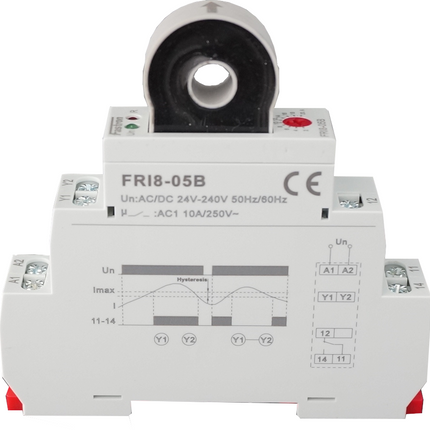

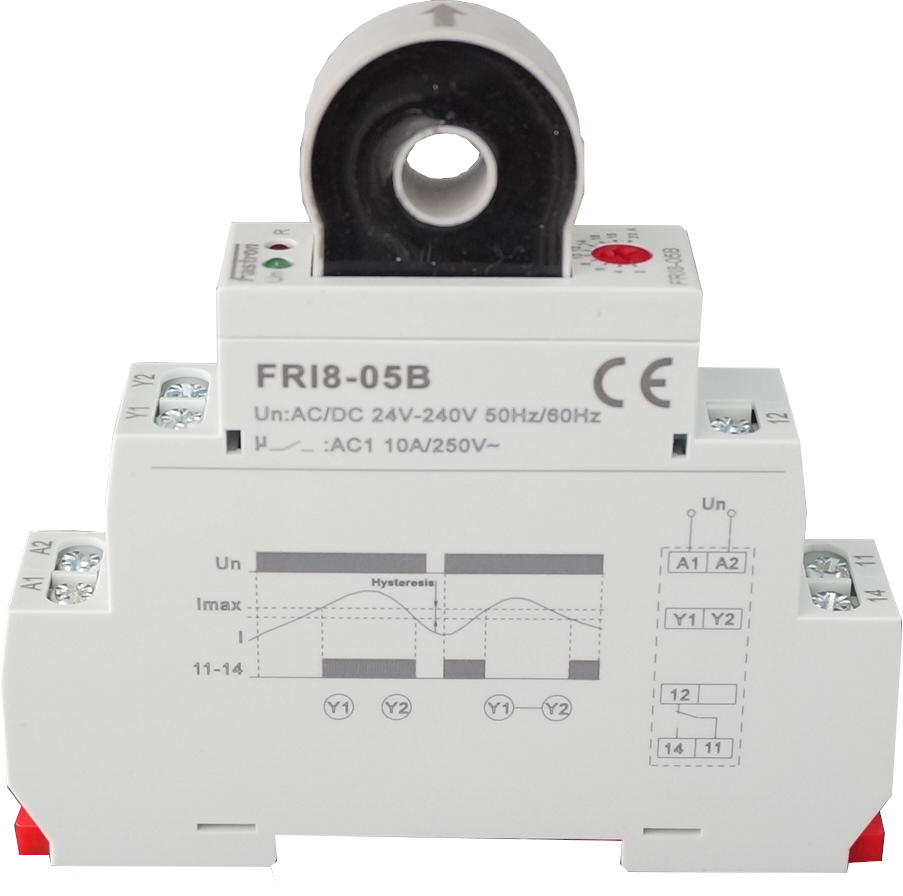

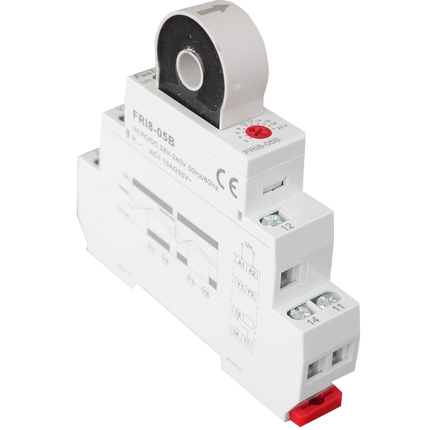

        Fastron FRI 8-05/A, Current Monitoring Relay AC 2-20 Amp, Adjustable Range, 9mm Aperture Universal 24-240VAC 24VDC

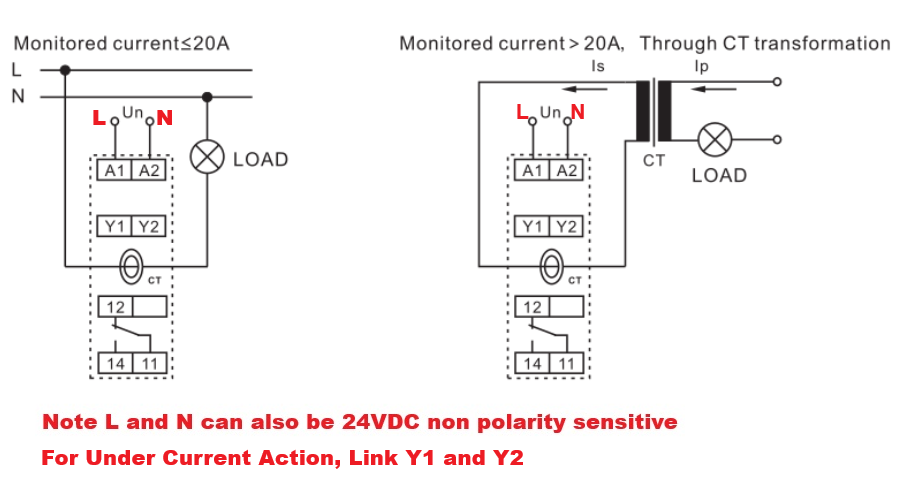

        FRI8-05/A Series serves to monitor AC currents 2,4,6,8,10,12,14,16,18,20 up to 20 Amp, and provides Relay alarm output with Over/Undercurrent selection by jumper. Can replace Crouzet 84871122

        Features :

        ??

        • Current transformer is a part of the product. Inside this transformer there is a wire which senses the volume of flowing current
        • Non Invasive measurement
        • Galvanically separates monitored circuit
        • Universal supply AC 24 - 240 V and DC 24 V Supply is galvanically separated from measuring current
        • Current withstand up to 100 A
        • Output contact: 1 x changeover/SPST 8 A Clamp terminals 1-phase, 1-MODULE, DIN rail mounting

        Applications :

        • Heating bars in sliding rails
        • Heating cables
        • Indication of current flow
        • Controlling of 1-phase motor consumption
        Specification

        Fastron Part Number

        FRI8-05/A

        Cable Aperture

        9mm

        Voltage Range

        AC 24 - 240 V, DC 24 V (AC 50 - 60 Hz)

        Operating Range

        -15 %; ? %

        Current Range

        1 - 20 A (AC 50 Hz)

        Current Trip Adjustment

        2,4,6,8,10,12,14,16,18,20 Amp Setpoints

        Setting Accuracy

        5 %

        Burden

        max. 1.5 VA

        Repeatability

        1 %

        Temperature Drift

        0.1%/??C

        Peak Overload (10s)

        100 Amp

        Time delay T1

        max. 500 ms

        Time delay T2

        N/A

        Output

        SPDT Relay 8 Amp

        Number of contacts

        1 x changeover/ SPDT (AgNi / Silver Alloy)

        Current rating

        8 A / AC1

        Breaking capacity

        2500 VA / AC1, 240 W / DC

        Inrush current

        10 A

        Switching voltage

        250 V AC1 / 24 V DC

        Min. breaking capacity DC

        500 mW

        Indication of state

        red LED

        Mechanical life

        1 x 107

        Electrical life (AC1)

        1 x 105

        Other information

        ??

        Operating temperature

        -20 ... ? ??C

        Storage temperature

        -30 ... ? ??C

        Electrical strength

        4 kV (supply - output)

        Operating position

        any

        Mounting

        DIN rail EN 60715

        Protection degree

        IP 40 from front panel / IP 10 terminals

        Overvoltage category

        III.

        Pollution degree

        2

        Max. cable size (mm )2

        solid wire max. 2x2.5 or 1x4 ; with sleeve max. 1x2.5 or 2x1.5

        Dimensions

        90 x 17,6 x 64 mm

        Weight

        69 g

        Standards

        EN 60255-6, EN 61010-1, RoHS, CE


        Datasheet
        Application Notes

        Monitoring relay FRI8-05/A serves to monitor current level in single phase AC circuits. Due to its fluent adjustment of release current, it is predestined for applications with necessity of current flow indication, and can be used as precedence relay. Output relay is off in normal state. In case the set current level is exceeded, it switches. Multi voltage supply is an advantage.
