FRI8-01/0.05, Current Monitoring Relay AC 0.05 - 0.5 A, Adjustable delay 0.5 - 10 s, 1 x CO 10 Amp, Universal 24-240VAC 24VDC Aux Supply

FRI8-01/0.05, Current Monitoring Relay AC 0.05 - 0.5 A, Adjustable delay 0.5 - 10 s, 1 x CO 10 Amp, Universal 24-240VAC 24VDC Aux Supply

Product form
Free pickup in our shop(s)

99 pcs in stock

$57.00 $62.70 inclGST Excl. VAT

        SKU: FE-FRI 8-01/0.5

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

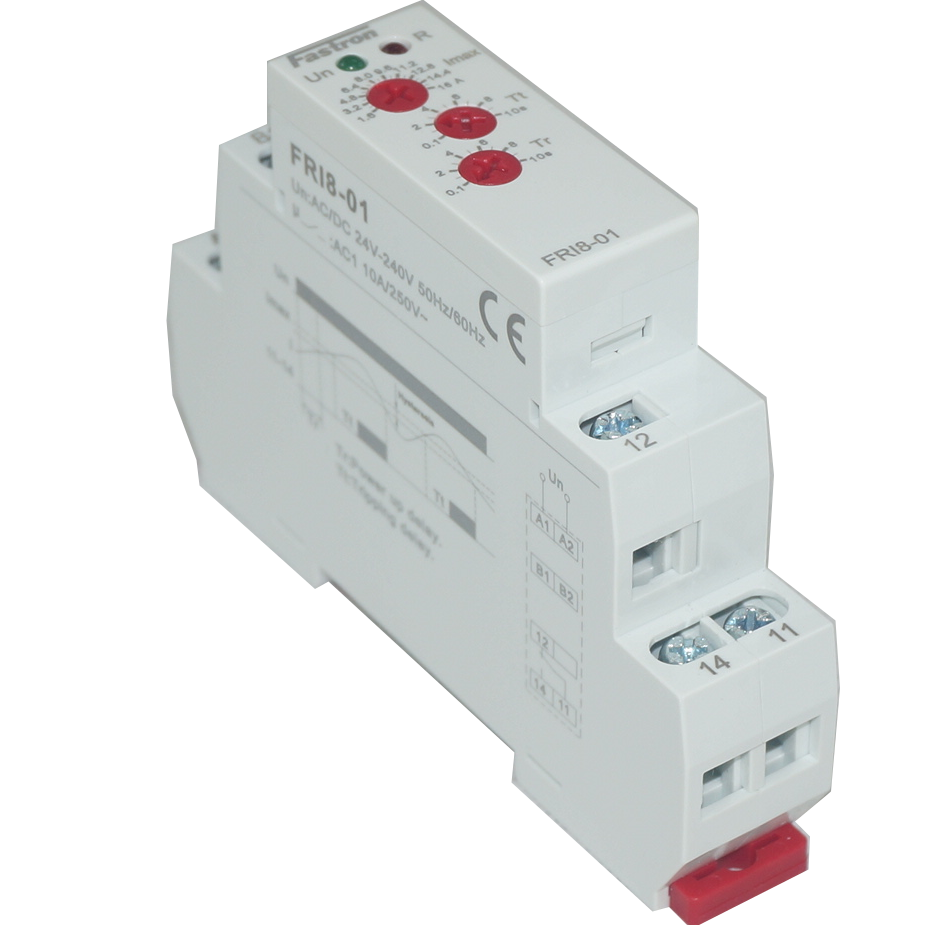

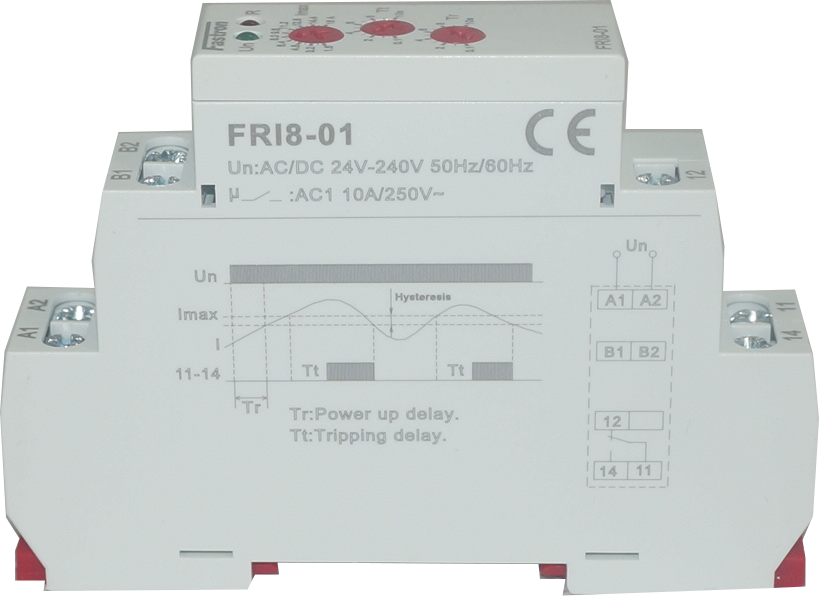

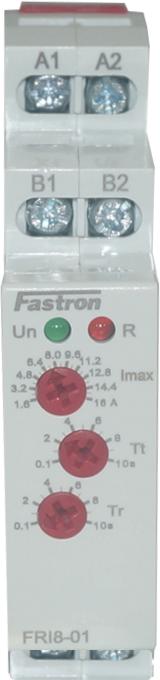

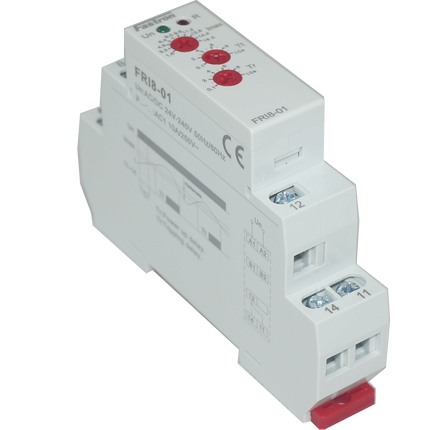

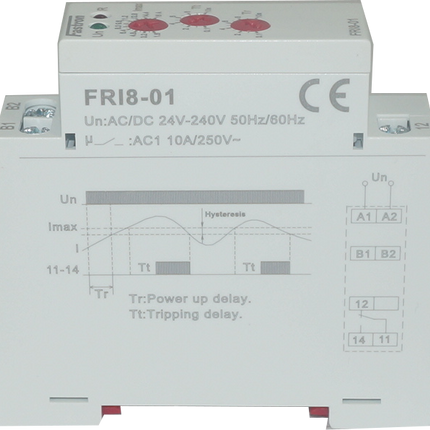

        Fastron FRI 8-01/0.05, Current Monitoring Relay AC 0.05 - 0.5 A, Adjustable delay 0.5 - 10 s, 1 x CO 10 Amp, Universal 24-240VAC 24VDC Aux Supply

        FRI 8 Series serves to monitor AC currents up to 16 Amp, and provides Relay alarm output with adjustable delay time 0.5 - 10s.

        Features :

        • Suitable for Current Transformer Monitoring
        • Flexible adjustment by potentiometer, choise of
        • 6 Models: 0.05 - 0.5 A; 0.1 - 1 A; 0.2 - 2 A; 0.5 - 5 A; 0.8 - 8 A; 1.6 - 16 A Adjustable delay 0.5 - 10 s to eliminate short current peaks

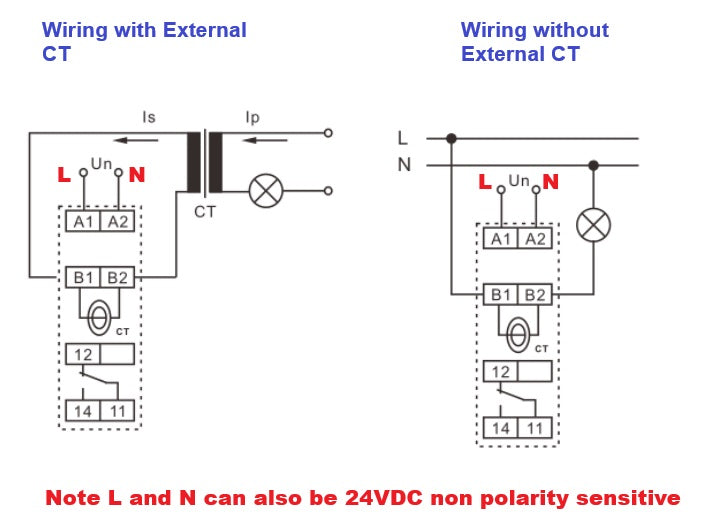

        • Possible to use current scanning from current transformer - up to 600 A Universal supply AC 24 - 240 V and DC 24 V
        • Supply is galvanically separated from measured current
        • Output contact: 1 x changeover 8 A
        • 1-phase, 1-MODULE, DIN rail mounting

        Applications :

        • Heating bars in sliding rails
        • Heating cables
        • Indication of current flow
        • Controlling of 1-phase motor consumption
        Specification

        Fastron Part Number

        FRI 8-01/1

        Voltage Range

        AC 24 - 240 V, DC 24 V (AC 50 - 60 Hz)

        Operating Range

        -15 %; ? %

        Current Range

        0.05 - 0.5 A (AC 50 Hz)

        Current Trip Adjustment

        Potentiometer

        Setting Accuracy

        5 %

        Burden

        max. 1.5 VA

        Repeatability

        1 %

        Temperature Drift

        0.1%/??C

        Peak Overload (10s)

        1.1 x Ipn

        Time delay T1

        max. 500 ms

        Time delay T2

        adjustable 0.1-10 s

        Output

        ??

        Number of contacts

        1x changeover/ SPDT (AgNi / Silver Alloy)

        Current rating

        10 A / AC1

        Breaking capacity

        2500 VA / AC1, 240 W / DC

        Inrush current

        10 A

        Switching voltage

        250 V AC1 / 24 V DC

        Min. breaking capacity DC

        500 mW

        Indication of state

        red LED

        Mechanical life

        1 x 107

        Electrical life (AC1)

        1 x 105

        Other information

        ??

        Operating temperature

        -20 ... ? ??C

        Storage temperature

        -30 ... ? ??C

        Electrical strength

        4 kV (supply - output)

        Operating position

        any

        Mounting

        DIN rail EN 60715

        Protection degree

        IP 40 from front panel / IP 10 terminals

        Overvoltage cathegory

        III.

        Pollution degree

        2

        Max. cable size (mm )2

        solid wire max. 2x2.5 or 1x4 ; with sleeve max. 1x2.5 or 2x1.5

        Dimensions

        90 x 17,6 x 64 mm

        Weight

        69 g

        Standards

        EN 60255-6, EN 61010-1, RoHS


        Datasheet
        Application Notes

        Monitoring relay FRI serves to monitor current level in single phase AC circuits. Due to its fluent adjustment of release current, it is predestined for applications with necessity of current flow indication, and can be used as precedence relay. Output relay is off in normal state. In case the set current level is exceeded, it switches. Multivoltage supply is an advantage.
