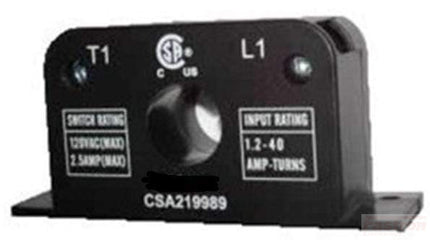

FES003 AC Current Switch, 1-40Amp Self Powered, Average RMS Sensing, 2.5Amp @ 120VAC. Trip Point is fixed at 1Amp

Fastron Part Number	FES003
Technology	Split Core AC Current Transformer
Alarm Type	NC Relay 2.5Amp @ 120VAC
Supply Voltage	Self Powered
Load Current (RMS)	1Amp to 40 Amp
Trip Point	1A Locked
Isolation	2kV (AC, 50Hz, 1 min)
Bandwidth	50/60Hz
Mounting Style	Panel Mount
Operating Temperature Range	-25°C / 70°C
Accuracy	1%
Termination Style	Screw Terminals
Unit Weight	200g
Certifications	UL E320368, CE, Rohs compliant

Product Datasheet

Compact and versatile transducers for high Isolation Measurements of DC currents from 0 to 400 Amp DC (higher with external sensor) with signal conditioning. Choice of output types: 4-20 mA, 0-5 V or 0-10 V

Features

• VFD and SCR waveforms current measurement
• Signal condtioned output
• Din Rail mounting
• Eliminates insertion loss
• Isolated plastic case recognised according to UL94-V0

Advantages

• Highly accurate low current measurement down to 1mA
• High isolation between primary and secondary circuits
• Easy installation

Applications

-VFD Controlled Loads

VFD output indicates how the motor and attached load are operating

-SCR Controlled Loads

Accurate measurement and control of DC Power Systems. Current measurement gives faster response than temperature measurement.

-Application Domain

Energy and Automation

Fastron Part Number	F921 DC Series
Technology	Closed Loop Hall Effect
Alarm Type	Relay C/O 4A @ 30VDC, 0.5 Amp @ 250VAC High and Low Alarm Latched or Non Latched
Supply Voltage	9-36V (48VDC Optional)
Load Current (RMS + DC)	0-100mA up to 0-400Amp (higher with external sensor)
Output	0-10V, 0-5V, 0-20mA, 4-20mA
Isolation	2.5kV (AC, 50Hz, 1 min)
Bandwidth	DC
Mounting Style	Din Rail Mount
Operating Temperature Range	-25°C / 70°C
Accuracy	1%
Termination Style	Screw Terminals
Unit Weight	150g
Factory Pack Qty	6

Product Datasheet
