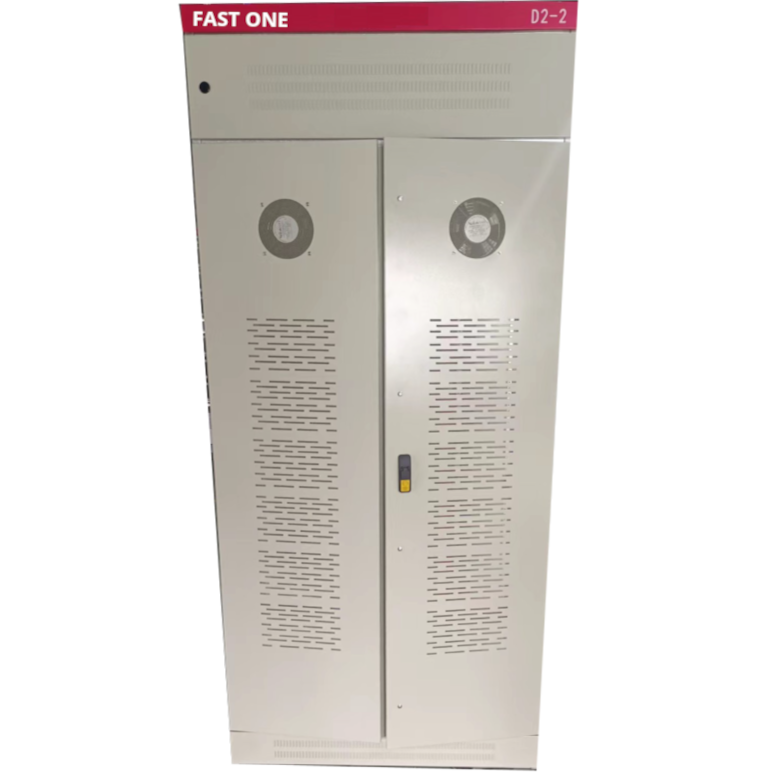

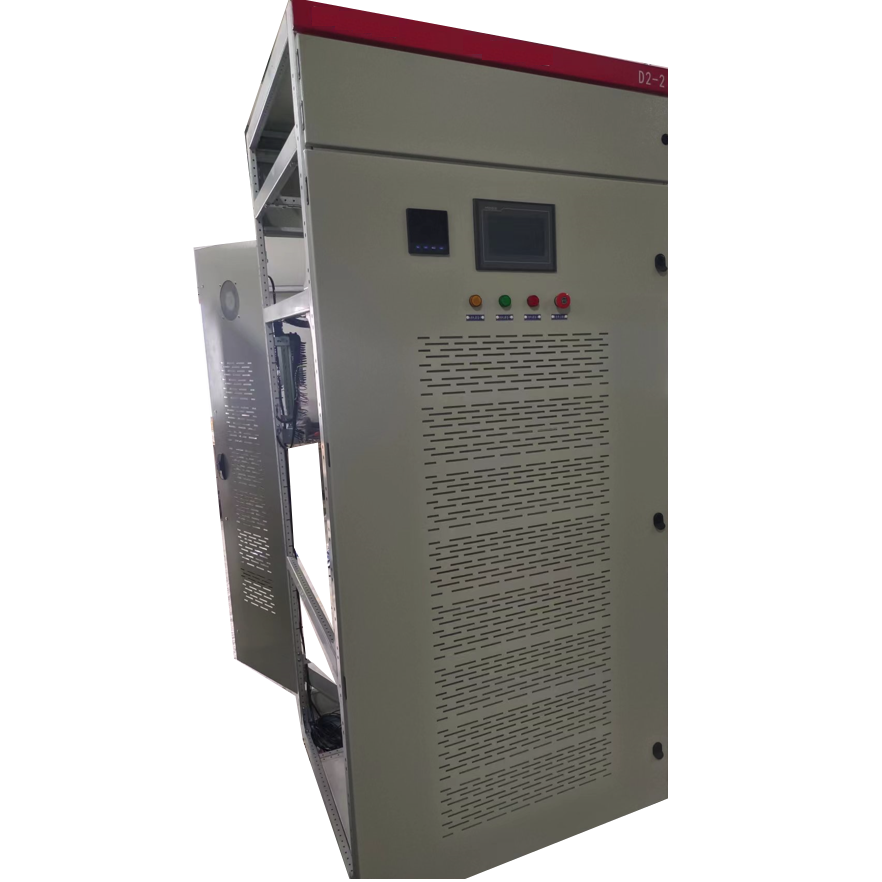

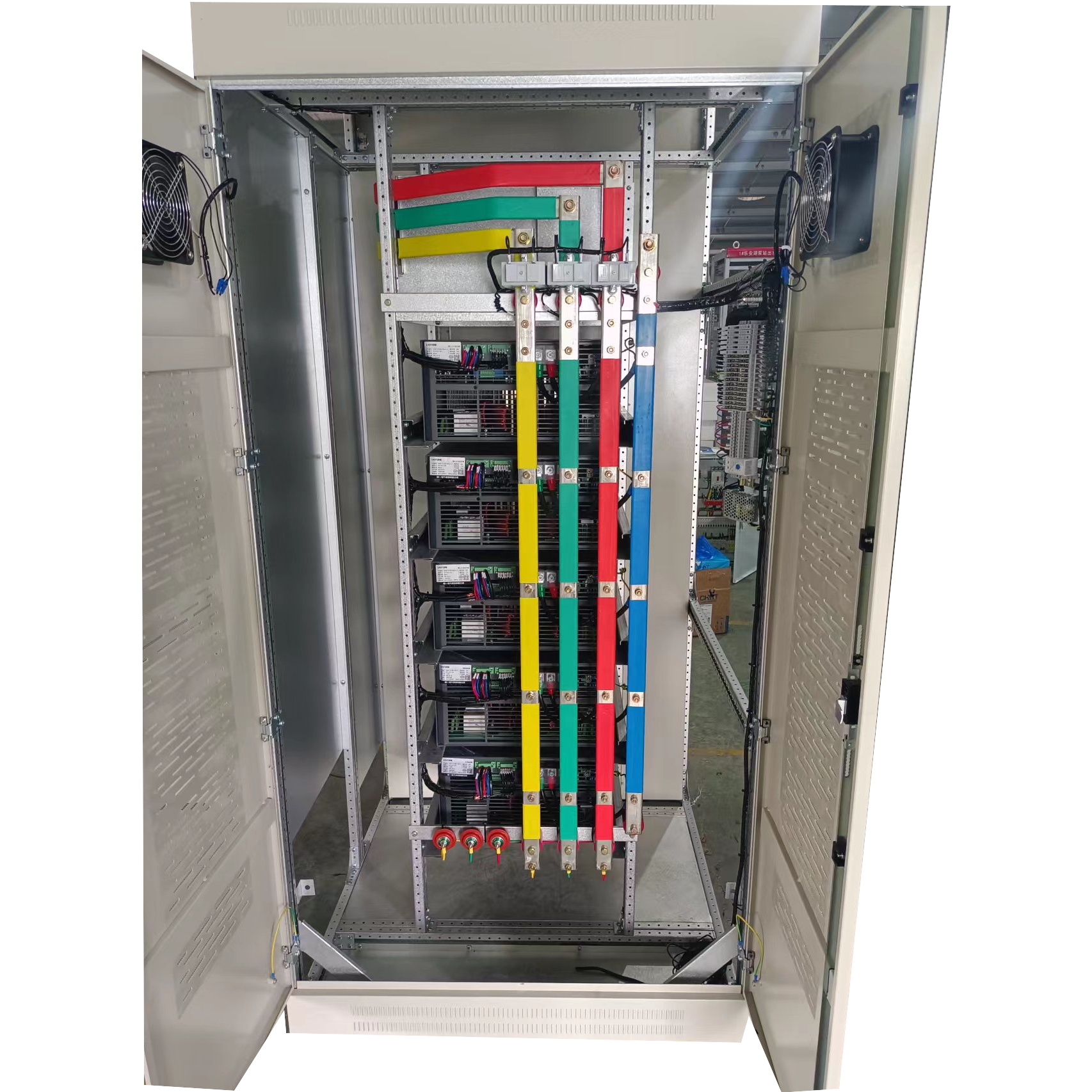

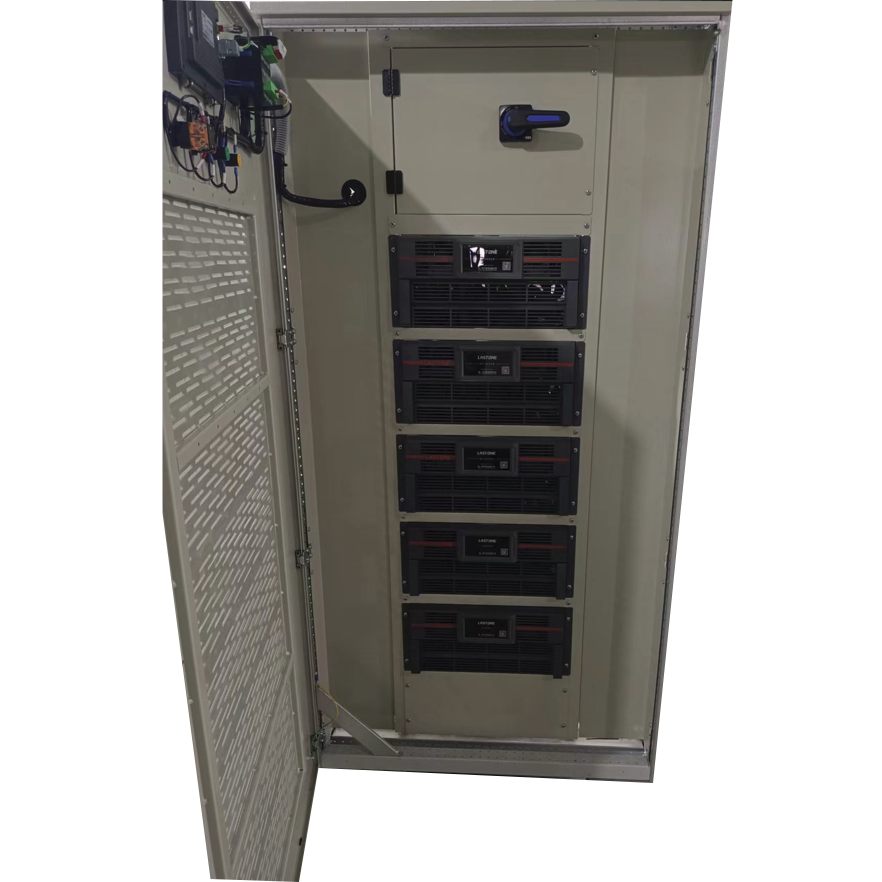

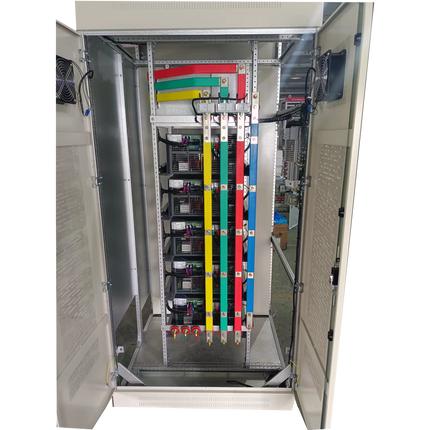

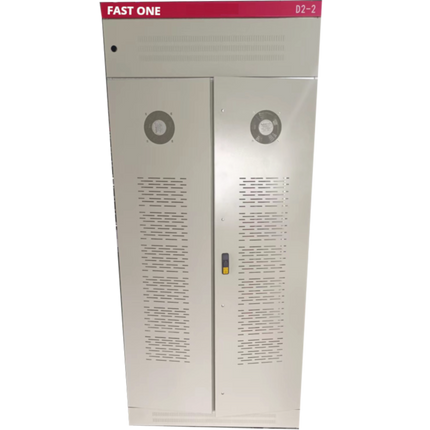

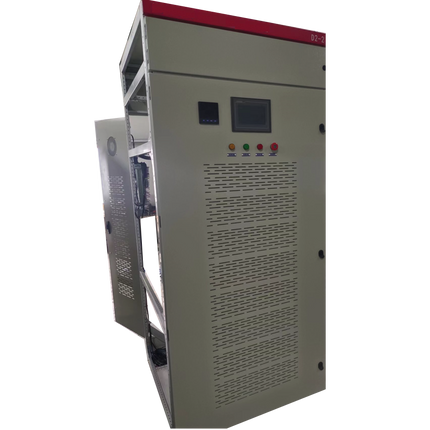

Fast ONE Complete AHF 400A-400V, Active Harmonic Filter & Static Var Generator, 400 Amp / 280 Kvar @ 45 Deg C, 3 Phase 3 Wire, 400VAC +/-20%, L:950 x W:950 x H:2200mm

Fast ONE Complete AHF 400A-400V, Active Harmonic Filter & Static Var Generator, 400 Amp / 280 Kvar @ 45 Deg C, 3 Phase 3 Wire, 400VAC +/-20%, L:950 x W:950 x H:2200mm

Product form

Out of stock

$37,500.00 $41,250.00 inclGST Excl. VAT

        SKU: FE-Fast ONE Complete AHF 400A-400V

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Fast ONE Complete AHF 400A-400V, Active Harmonic Filter & Static Var Generator, 400 Amp / 280 Kvar @ 45 Deg C, 3 Phase 3 Wire, 400VAC +/-20%, L:950 x W:950 x H:2200mm

        For Automatic Switching of Power Factor Correction Capacitors according to changing site conditions. and for the filtering or control of Harmonic Distortion

        Features

        • Automatic Power Factor Correction up to Cos φ = 0.99
        • Overtemperature Alarm
        • Optional RS485 Comms
        • IEC 654-1, UL Approved
        • 3 Year Fastron Electronics Warranty
        • Modular Construction for Rack or Wall Mount Installations
        • Perfect for Residential Applications
        • Stack multiple modules for larger Power Factor Correction Requirements



          Specification
          Fastron Part Number Fast ONE Complete AHF 400A-400V
          Function Reactive Power Correction & Active Harmonic Filter
          Configuration 4 x 100 Amp/70Kvar Modules
          Current /Load Rating 400 Amp per Phase (360 Amp @ 55 Deg C)/280 Kvar
          Nominal Voltage (Un) 400VAC Line to Line 50Hz
          Switch Delay Time Instant Correction/Inverter Based
          Desired Harmonic 0.99 IND - 0.99 CAP
          LCD Display IGBT Temp, Grid Current Grid THDi, Grid PF, Grid Imbalance
          PCurrent imbalance < 5%
          Comms RS485 (Optional)
          Termination Style Screw
          Dimensions L:950 x W:950 x H:2200mm
          Weight 520kg
          Certification

          EN 61000-6-4:2007+A1:2011

          EN 61000-6-2:2005

          EN 61000-3-2:2014

          EN 61000-3-3:2013+A1:2019
          Factory Pack Qty 1
          Material of housing PC/ABS Unflammable, according to UL 94 V-0, & Stainless Steel Painted RAL 1013
          Enclosure protection IP21
          Safety According to EN 61 010-1, installation category III Pollution degree 2
          Operating Temperature -20...55 °C
          Datasheet

          Read more

          Specifications

          • Weight: 200gr
          • Usage: Indoor & outdoor
