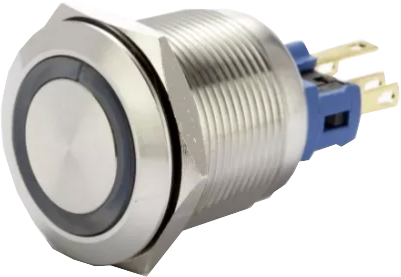

F22-372RGB, 22mm Latching Pushbutton Switch Metal with RED/GREEN/BLUE Ring Illumination, Configuration_2 x SPST (2 x NO) 2 x SPST (2 x NC), 3Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops

F22-372RGB, 22mm Latching Pushbutton Switch Metal with RED/GREEN/BLUE Ring Illumination, Configuration_2 x SPST (2 x NO) 2 x SPST (2 x NC), 3Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops

Product form

Out of stock

$27.00 $29.70 inclGST Excl. VAT

      • Shipped today? Order within: Jul 23, 2026 17:00:00 +1000

        SKU: FE-F22-372RGB

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        F22-372RGB, 22mm Latching Pushbutton Switch Metal with RED/GREEN/BLUE Ring Illumination, Configuration_2 x SPST (2 x NO) 2 x SPST (2 x NC), 3Amp (Nominal) 5 Amp (Max) @ 250VAC or 24VDC, 24VDC Illumination Supply, 0.05 Million Ops

        Description

        • Pushbutton switch available in version Standard, Illuminated, with Point Illumination, Configuration_2 x SPST (2 x NO) 2 x SPST (2 x NC), Lettering, varnished in different colours
        • Assembly by mounting with nut
        • Pin connections, Pins with Soldering Aid or Clip for Pins

        Characteristics

        • Housing and actuator material types: zinc die-cast with nickel plating or stainless steel
        • Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 250VAC 30VDC, switching current max. 12 Amp
        • 24VDC Illumination Supply Voltage
        • Zinc die-cast for housing and actuator For indoor use, no Illumination, Configuration_2 x SPST (2 x NO) 2 x SPST (2 x NC), no lettering
        • Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols
        • Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data)
        • Tamper Proof suitable for public spaces
        Specification
        Fastron Electronics Part Number F22-372O
        Switch Size 20 x 22mm
        Nominal Voltage 250VAC/DC
        Rated Power 750W
        Switch Type Latching 2NO + 2NC
        Illumination voltage 24VDC @ 10mA
        Illumination type RED/GREEN/BLUE/(RGB) RING
        Nominal Current (AC/DC) 3 Amp @240VAC/24VDC
        Contact Resistance ON/OFF <100m Ohm
        Dimensions ø22 x 14.6mm
        Operating Temperature Range -20°C / 85°C
        Termination Faston/Solder Pins
        IP Protection Rating (IP 67 with Oring) IP 64 (IP40 switching circuit)
        Unit Weight 40g
        Factory Pack Qty 10



        Datasheet

        Read more

        Specifications

        • Weight: 200gr
        • Usage: Indoor & outdoor
