Elite E500C-2202, Power Quality Recorder with Harmonics (15th), Class 0.2S, 50..500VAC 50/60Hz, RS485 Modbus RTU, 35..300V DC/85..300VAC Aux, 16MB Dual Logger Memory, TFT Touch Screen, 10 Years Warranty

• Automatic range of nominal current up to 6 A (Includes 5A/1A CT Input) and nominal voltage up to 500 V L-L, 300V L-N
• Configurable 2 x Tariff Inputs or 2 x Pulse Outputs, or Alarm Outputs
• Dual Loggers, configurable for Instant or accumulated energy
• RMS values of currents and voltages
• Measurements of active, reactive, apparent power and power factor
• Measurements of energy in all 4 quadrants Average values of measurands per interval
• RS 485 communication up to 38400 bit/s as standard
• Optional Protocol Modules Modbus TCP, BACNet IP, Profinet, SCADA EC61850
• Optional Modules for Analogue outputs and Relay Alarms

The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.

Features :

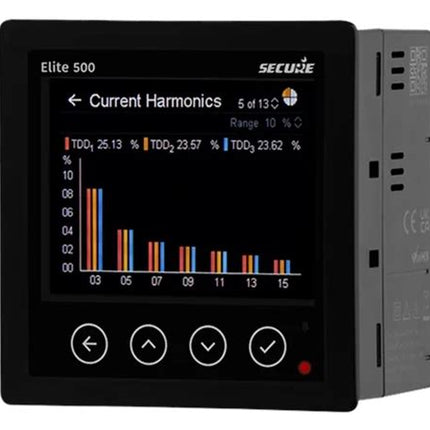

• Measurement of instantaneous values and accumulated energy. Includes Harmonics to the 15th

• Accuracy class 0.5S

• Dual Internal Loggers
• Measurement of 20 minimal and maximal values in different time periods
• RS 232/RS 485 communication up to 38400 bit/s or Ethernet communication
• MODBUS communication protocol
• Up to 4 inputs or outputs (pulse outputs, alarm outputs, tariff inputs)
• Universal or AC power supply

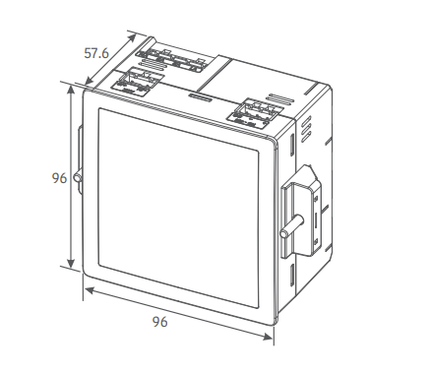

• Graphic Colour TFT 320 x 240 pixels (53x70mm)
• Automatic range of nominal current up to 6 A and nominal voltage up to 500 V
• Multilingual support
• User-friendly Free ECon Configuration software

Specification

Datasheet

• Product Datasheet
•


Cross Reference

 The Following meters are close equivalents to Elite 500 Series. For further details please contact Fastron Sales Team
