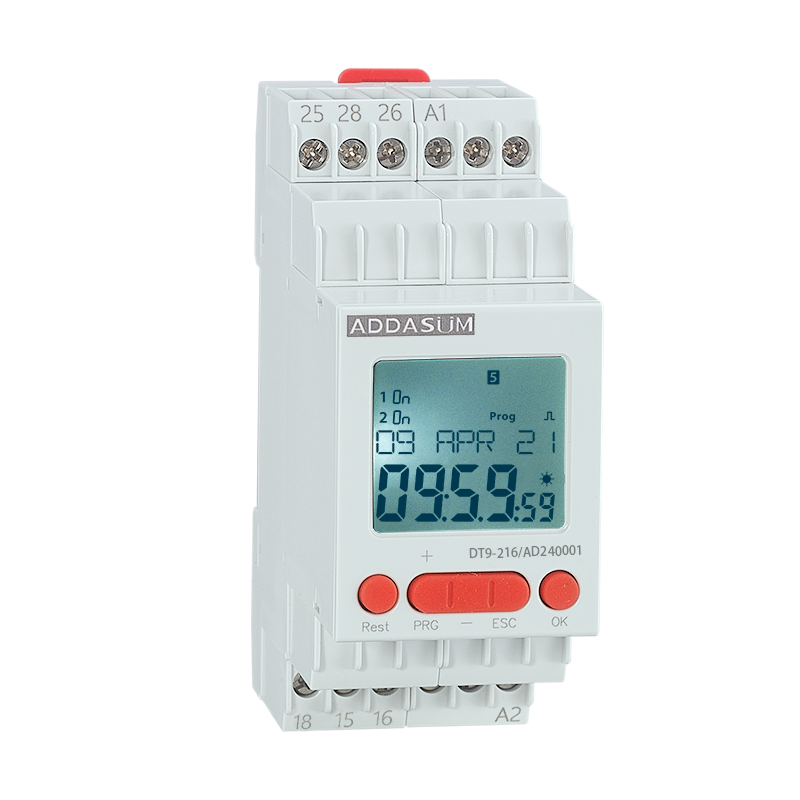

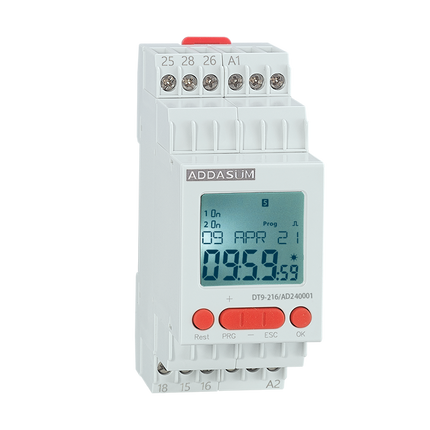

DT9-216/D12001, Dual Digital Time Switch with 2 independant Daily Weekly, Monthly, Yearly, Astro, Random program, Universal 12VDC Power Supply/Control, 2 x 16 Amp SPST CO Relay

DT9-216/D12001, Dual Digital Time Switch with 2 independant Daily Weekly, Monthly, Yearly, Astro, Random program, Universal 12VDC Power Supply/Control, 2 x 16 Amp SPST CO Relay

Product form

Out of stock

$79.00 $86.90 inclGST Excl. VAT

        SKU: FE-DT9-216/D12001

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        DT9-216/D12001, Dual Digital Time Switch with 2 independant Daily Weekly, Monthly, Yearly, Astro, Random program, Universal 12VDC Power Supply/Control, 2 x  16 Amp SPST CO Relay

        DT9-216/AD240001 UNI 12VDC - 2 Relay 16A :

        • Dual Timer
        • Multi-range (1 min - yearly)
        • Astro Timer Function
        • Random Timer Function
        • Multi-voltage 24 →240 V AC/DC
        • LED status indicator
        • Possibility of external load connection in parallel to the control input
            Specification
            Assudum Part Number DT9-216/AD240001
            Function Daily, Monthly, Yearly, Astronomical, Random Time Switch
            Nominal Voltage 24VDC
            Digital Output 2 x C/O (SPST) (Changeover -Single Pole), 250VAC/DC @ 16 Amp
            Min Breaking Current 10mA/12VDC
            Timing Ranges Minutes, Hours, Days, Weeks, Months, Years, Astronomical, Sunset, Random
            Minimum Pulse Duration 30ms/100ms with load
            Repeatability 0.5%
            Reset Time 120ms
            Isolation 4kV
            Repetition Accuracy 0.5%
            Threshold Adjustment Range 10 → 100 % of the range
            Termination Style Screw
            Weight 80g
            Factory Pack Qty 1
            Over Voltage Category 3 in accordance with IEC/EN 60664-1
            Pollution Degree 2 in accordance with IEC/EN 61131-2
            Protection rating IP40 (Front), IP20 (Rear)
            Mechanical Resistance

            Immunity to vibrations IEC/EN 60068-2-6, test Fc

            Immunity to shock IEC/EN 60068-2-27, test Ea
            Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
            Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
            Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22



            Datasheet



            Read more

            Specifications

            • Weight: 200gr
            • Usage: Indoor & outdoor
