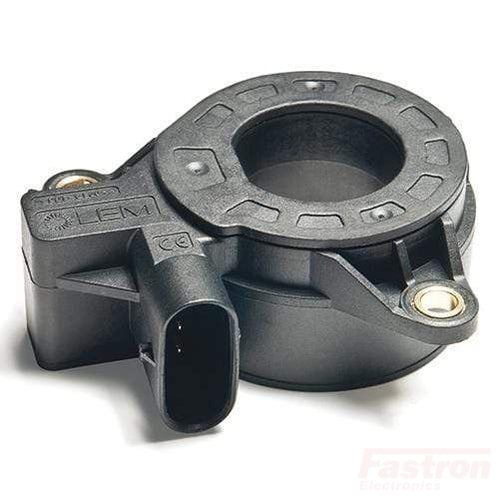

LEM DHAB S/124 Series O/L Automotive AC/DC Current Transducer, Multirange

Features

  • Open Loop Transducer using Hall Effect
  • Low Voltage Application
  • Unipolar +5V  Power Supply
  • Primary Current Measuring Range up to +/-25A, and +/-200A for Channel 2
  • Maximum RMS primary admissable current: defined by busbar to have T° < +150°C
  • Operating Temperature Range: -40°C < T° < +125°C
  • Output Voltage: Full ratio-metric (in sensitivity and offset)
  • Dual Channel Sensor for Wider Measurement Range and Redundancy

Advantages

  • Good Accuracy for High and Low Current Range
  • Good Linearity
  • Low Thermal Offset Drift
  • Low Thermal Sensitivity Drift
  • Hermetic Package

Automotive Applications

  • Battery Pack Monitoring
  • Hybrid Vehicles
  • EV and Utility Vehicles



LEM DHAB S/124 Series O/L Automotive AC/DC Current Transducer, Multirange

Features

  • Open Loop Transducer using Hall Effect
  • Low Voltage Application
  • Unipolar +5V  Power Supply
  • Primary Current Measuring Range up to +/-25A, and +/-200A for Channel 2
  • Maximum RMS primary admissable current: defined by busbar to have T° < +150°C
  • Operating Temperature Range: -40°C < T° < +125°C
  • Output Voltage: Full ratio-metric (in sensitivity and offset)
  • Dual Channel Sensor for Wider Measurement Range and Redundancy

Advantages

  • Good Accuracy for High and Low Current Range
  • Good Linearity
  • Low Thermal Offset Drift
  • Low Thermal Sensitivity Drift
  • Hermetic Package

Automotive Applications

  • Battery Pack Monitoring
  • Hybrid Vehicles
  • EV and Utility Vehicles



LEM Part Number DHAB S/124
Technology Multirange Open Loop Hall Effect
ROHS Yes
Supply Voltage 5 VDC
Load Current Channel 1 (RMS) +/-25 Amp
Load Current Channel 2 (RMS) +/-200 Amp
Output 0.25 - 4.75V (2.5Vref)
Isolation 2.5kV (AC, 50Hz, 1 min)
Bandwidth DC - 70Hz
Mounting Style Panel Mount/Cable Mount
Aperture 22.5mm
Operating Temperature Range -40°C - 70°C
CH1 Accuracy @ 25 Deg C 0.15%(0A),0.7%(37A),1.3%(75A)
CH2 Accuracy @ 25 Deg C 1%(0A),6%(250A),9%(500A)
Termination Style TYCO 1-1456426-5
Unit Weight 100g
Factory Pack Qty 6
