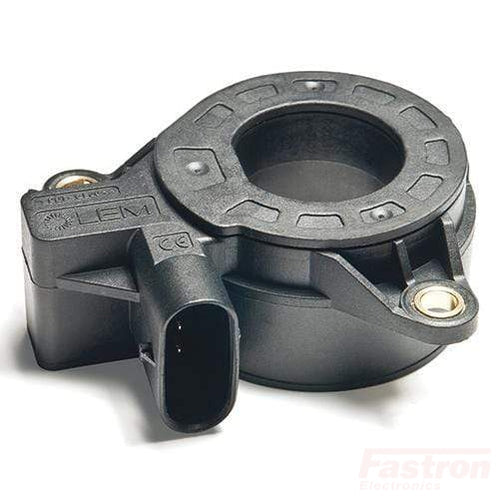

DHAB S/106, O/L Automotive AC/DC Current Transducer, Multirange +/-20A +/-500A, 5VDC Supply, 22.5mm Round Aperture

DHAB S/106, O/L Automotive AC/DC Current Transducer, Multirange +/-20A +/-500A, 5VDC Supply, 22.5mm Round Aperture

Product form
Free pickup in our shop(s)

124 pcs in stock

$75.00 $82.50 inclGST Excl. VAT

        SKU: FE-DHAB S/106

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        LEM DHAB S/106, O/L Automotive AC/DC Current Transducer, Multirange +/-20A +/-500A, 5VDC Supply, 22.5mm Round Aperture

        Features

        • Open Loop Transducer using Hall Effect
        • Low Voltage Application
        • Unipolar +5V Power Supply
        • Primary Current Measuring Range up to +/-20A, and +/-500A for Channel 2
        • Maximum RMS primary admissable current: defined by busbar to have T° < +150°C
        • Operating Temperature Range: -40°C < T° < +125°C
        • Output Voltage: Full ratio-metric (in sensitivity and offset)
        • Dual Channel Sensor for Wider Measurement Range and Redundancy

        Advantages

        • Good Accuracy for High and Low Current Range
        • Good Linearity
        • Low Thermal Offset Drift
        • Low Thermal Sensitivity Drift
        • Hermetic Package

        Automotive Applications

        • Battery Pack Monitoring
        • Hybrid Vehicles
        • EV and Utility Vehicles



        Specification
        LEM Part Number DHAB S/106
        Technology Multirange Open Loop Hall Effect
        ROHS Yes
        Supply Voltage 5 VDC
        Load Current Channel 1 (RMS) +/-20 Amp
        Load Current Channel 2 (RMS) +/-500 Amp
        Output 0.25 - 4.75V (2.5Vref)
        Isolation 2.5kV (AC, 50Hz, 1 min)
        Bandwidth(-3dB) DC - 70Hz
        Mounting Style Panel Mount/Cable Mount
        Aperture ⌀22.5mm
        Operating Temperature Range -40°C - 70°C
        CH1 Accuracy @ 25 Deg C 0.15%(0A),0.30%(10A),0.4%(20A)
        CH2 Accuracy @ 25 Deg C 1.5%(0A),6%(250A),9%(500A)
        Termination Style TYCO 1-1456426-5
        Unit Weight 100g
        Factory Pack Qty 6
