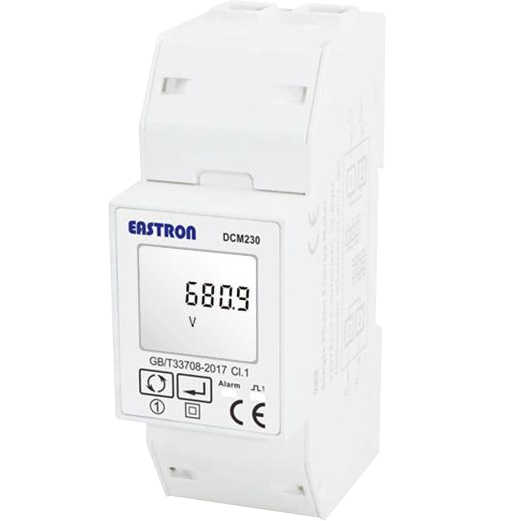

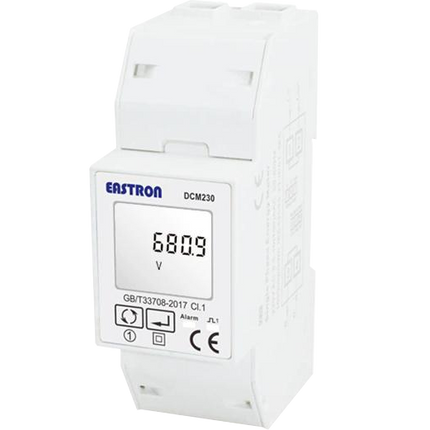

DCM230 1-4-1-1 V1, DIN Rail Mount DC kWh Meter, 85-265VAC, 85-265VAC aux, Class 1, 45/60/75mV Shunt Connect, w/ 1 x pulse outputs and RS485 Modbus RTU Comms, Single Tariff, MID Approved

DCM230 1-4-1-1 V1, DIN Rail Mount DC kWh Meter, 85-265VAC, 85-265VAC aux, Class 1, 45/60/75mV Shunt Connect, w/ 1 x pulse outputs and RS485 Modbus RTU Comms, Single Tariff, MID Approved

Product form

Out of stock

$249.00 $273.90 inclGST Excl. VAT

        SKU: FE-DCM230 1-4-1-1 V1

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        DCM230 1-4-1-1 V1, DIN Rail Mount DC kWh Meter, 85-265VAC, 85-265VAC aux, Class 1, 45/60/75mV Shunt Connect, w/ 1 x pulse outputs and RS485 Modbus RTU Comms, Single Tariff, MID Approved

        • 45/60/75mV Shunt Connect
        • RS 485 communication up to 38,400 bit/s as standard
        • 1 x Pulse Outputs (1 Configurable)
        • Bidirectional Measurement



        The meter is intended for measuring, and monitoring single-phase or electrical power network. The meter records DC Current and Voltage (DC Power) value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, energy, power) from the measured signals.



        Features :

        • Accuracy class 1

        • Measurement of Active and Reactive Power
        • Modbus RTU communication up to 38,400 bit/s communication
        • Pulse output as standard
        • Graphic LCD with illumination
          Specification
          Eastron Europe Part Number DCM230 1-4-1-1 V1
          Functions DC Energy Meter
          Supply Voltage 85-265VAC
          Nominal Measurement Range 5-60VDC
          Maximum Measurement Range 5-60VDC
          Nominal Current Input Shunt up to 2000Amp See our DC Current Shunt Section for Suitable Shunt
          Pulse Output 1 x Configurable 60/100/200ms
          Tariff Input N/A
          Accuracy Class 1 (I,U,kW,kWh)
          Mounting Din Rail
          Real Time Clock 1min/month (30ppm)
          Internal Memory N/A
          Dimensions 36mm x 100mm x 66mm (2 modules wide)
          Isolation 4kV
          RS485 2400-38400 b/s
          Weight 250g
          Certification EN 61010-1 Installation Category III
          Factory Pack Qty 1
          Safety IP51(Indoor)
          Enclosure Material Noryl with fire protection to UL94-V-O. Self extinguishing
          Enclosure Size

          DIN 42880 4 Modules
          Operating Temperature -20 →+70 °C



          Documents
          Modbus Utility


            Read more

            Specifications

            • Weight: 200gr
            • Usage: Indoor & outdoor
