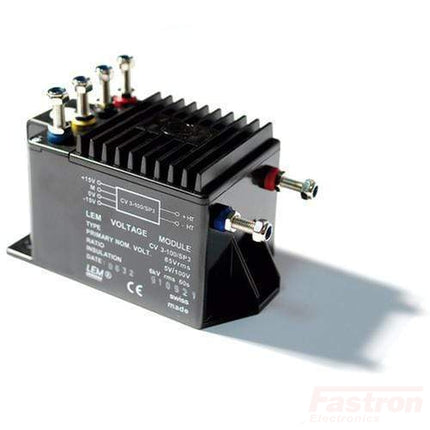

CV 3-200/SP5, Voltage Transducer Flux Gate, Vpn = 140V RMS, 10V output, +/- 15/24VDC supply, 2.5kV Isolation

CV 3-200/SP5, Voltage Transducer Flux Gate, Vpn = 140V RMS, 10V output, +/- 15/24VDC supply, 2.5kV Isolation

Product form
Free pickup in our shop(s)

10 pcs in stock

$1,698.00 $1,867.80 inclGST Excl. VAT

        SKU: FE-CV3-200/SP5

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        CV 3-200/SP5 Voltage Transducer Flux Gate, Vpn = 140V RMS, 10V output, +/- 15/24VDC supply, 2.5kV Isolation

        Features

        • Bandwidth DC to 700kHz
        • Closed loop transducer using Flux Gate
        • Compact and versatile
        • Panel Mount
        • Insulated plastic case recognized according to UL 94-V0


        Advantages

        • Very good linearity
        • High accuracy
        • Low temperature drift
        • Wide frequency bandwidth
        • Very low insertion losses
        • High immunity to external interference
        • Voltage overload capability
        • Low power consumption

        Applications

        • Railway substation or locomotive
        • High Frequency Drives
        • AC variable speed drives and servo motor drives
        • Static converters for DC motor drives
        • Battery supplied applications
        • Uninterruptible Power Supplies (UPS)
        • Switched Mode Power Supplies (SMPS)
        • Power supplies for welding applications
        • Water Treatment Electronics
        Specification
        LEM Part Number CV 3-200/SP5
        Technology Closed Loop Hall Effect
        Aperture No Aperture
        ROHS Yes
        Supply Voltage +/-15 VDC Bipolar, Isolated
        Primary Nominal Voltage (RMS + DC) +/- 140V
        Measurement Range +/- 200V
        Output 10V @Vp(max)
        Isolation 2.5 kV
        Bandwidth DC-700 kHz
        Mounting Style Panel Mount
        Operating Temperature Range -25°C / 75°C
        Accuracy 1%
        Termination Style M5 Screw
        Unit Weight 650g
        Factory Pack Quantity 4



        Datasheet
        Application Notes




        Read more
