Cube 350-M2-C-H, Panel Mount kWh Meter, Class 1, 5Amp input, 2 pulse inputs or alarm/pulse outputs, RS485 Comms, Single line LCD Display, Harmonics Measurement (15th)

Cube 350-M2-C-H, Panel Mount kWh Meter, Class 1, 5Amp input, 2 pulse inputs or alarm/pulse outputs, RS485 Comms, Single line LCD Display, Harmonics Measurement (15th)

Product form

1 pcs in stock

$369.00 $405.90 inclGST Excl. VAT

        SKU: FE-Cube 350-M2-C-H

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

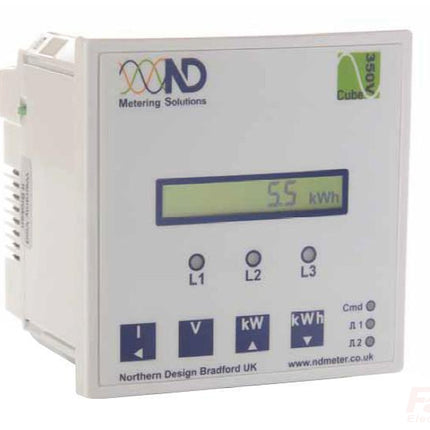

        Northern Design Cube 350-M2-C-H Series 3 Phase Power Meter

        • 2 Pulse Input or Outputs
        • Nominal current up to 6 A (For 5A CT Input) and nominal voltage up to 240V L-N
        • Single Line Display
        • Optional RS 232/RS 485 communication up to 19,200 bit/s
        • RMS values of currents and voltages
        • Measurements of active, reactive, apparent power and power factor
        • THD up to 15th Harmonic

        The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.

        Features :

        • 96 x 96mm Panel Mount

        • Accuracy class 1

        • Simple Menu
        • Optional RS 232/RS 485 communication up to 19,200 bit/s or Ethernet communication
        • MODBUS and Ethernet communication protocol
        • 240V AC power supply
          Specification
          Northern Design Part Number Cube 350-M2-C
          Functions kWh Meter, Energy Meter
          Supply Voltage 240VAC < 5VA
          Nominal Measurement Range 415V L-L 240V L-N, 5 Amp
          Maximum Measurement Range 415V L-L 280V L-N, 6 Amp
          Display Single Line LCD
          Pulse Output 2 (input or output)
          Accuracy Class 1 (kW,kWh) Class 1(Active) Class 2(kVar,PF)
          Battery Backup N/A
          Real Time Clock 1min/month (30ppm)
          Isolation 3.5kV
          RS232/RS485 2400-19200 b/s
          Weight 250g
          Certification EN 61010-1 Installation Category III
          Factory Pack Qty 1
          Environment

          IP54
          Safety

          Protection Class II
          Enclosure Material Mablex with fire protection to UL94-V-O. Self extinguishing
          EnclosureSize 96 x 96mm x 83.5mm (72mm behind panel)
          Terminals Rising Cage 4mm² (12 AWG) cable max
          Humidity < 75% Non Condensing
          Operating Temperature -20 →+70 °C

          Datasheet
          Application Notes

          Dual Tariff Guide
