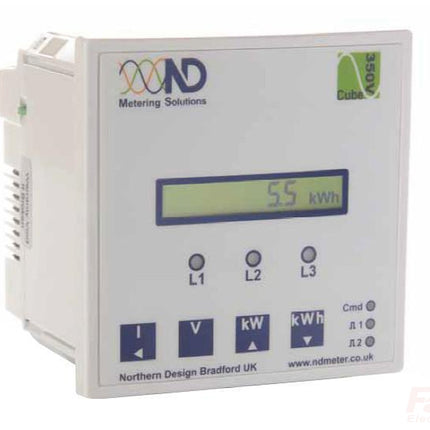

Cube 350-M2-C, Panel Mount kWh Meter, Class 1, 5Amp input, 2 pulse inputs or alarm/pulse outputs, RS485 Comms, Single line LCD Display

Cube 350-M2-C, Panel Mount kWh Meter, Class 1, 5Amp input, 2 pulse inputs or alarm/pulse outputs, RS485 Comms, Single line LCD Display

Available: 1pcs in stock, more available 4-5 Weeks
$298.00+GST
Successful pre-order.Thanks for contacting us!
Wishlist Compare

Northern Design Cube 350-M2-C Series 3 Phase Power Meter

  • 2 Pulse Input or Outputs
  • Nominal current up to 6 A (For 5A CT Input) and nominal voltage up to 240V L-N
  • Single Line Display
  • Optional RS 232/RS 485 communication up to 19,200 bit/s
  • RMS values of currents and voltages
  • Measurements of active, reactive, apparent power and power factor
  • THD up to 15th Harmonic



The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.



Features :

  • 96 x 96mm Panel Mount
  • Accuracy class 1

  • Simple Menu
  • Optional RS 232/RS 485 communication up to 19,200 bit/s or Ethernet communication
  • MODBUS and Ethernet communication protocol
  • 240V AC power supply

    Northern Design Cube 350-M2-C Series 3 Phase Power Meter

    • 2 Pulse Input or Outputs
    • Nominal current up to 6 A (For 5A CT Input) and nominal voltage up to 240V L-N
    • Single Line Display
    • Optional RS 232/RS 485 communication up to 19,200 bit/s
    • RMS values of currents and voltages
    • Measurements of active, reactive, apparent power and power factor
    • THD up to 15th Harmonic



    The meter is intended for measuring, analysing and monitoring single-phase or three-phase electrical power network. The meter records TRMS value according to the principle of fast sampling of voltage and current signals. A built-in microprocessor calculates measurands (voltage, current, frequency, energy, power, power factor, phase angles, etc.) from the measured signals.



    Features :

    • 96 x 96mm Panel Mount
    • Accuracy class 1

    • Simple Menu
    • Optional RS 232/RS 485 communication up to 19,200 bit/s or Ethernet communication
    • MODBUS and Ethernet communication protocol
    • 240V AC power supply
      Northern Design Part Number Cube 350-M2-C
      Functions kWh Meter, Energy Meter
      Supply Voltage 240VAC < 5VA
      Nominal Measurement Range 415V L-L 240V L-N , 5 Amp
      Maximum Measurement Range 415V L-L 280V L-N, 6 Amp
      Display Single Line LCD
      Pulse Output 2 (input or output)
      Accuracy Class 1 (kW,kWh)  Class 1(Active) Class 2(kVar,PF)
      Battery Backup N/A
      Real Time Clock 1min/month (30ppm)
      Isolation 3.5kV
      RS232/RS485 2400-19200 b/s
      Weight 250g
      Certification EN 61010-1 Installation Category III
      Factory Pack Qty 1
      Environment



       IP54



      Safety

      Protection Class II

      Enclosure Material Mablex with fire protection to UL94-V-O. Self extinguishing
      EnclosureSize 96 x 96mm x 83.5mm (72mm behind panel)



      Terminals Rising Cage 4mm² (12 AWG) cable max
      Humidity < 75% Non Condensing
      Operating Temperature -20 →+70 °C
