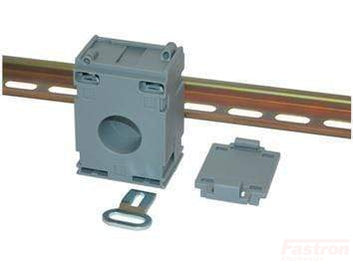

CT 132 H7 150/5 Amp CT 2.5VA, Class 1
Rated 3.5/5 based on 11 customer reviews

CT 132 H7 150/5 Amp CT 2.5VA, Class 1

  • Order within

Free Shipping for $300 Spend

Available: 6pcs in stock , more available in 4-5 Weeks
$23.85
$26.24inclGST

Free Shipping for $300 Spend

Wishlist Compare

Hobut CT 132 H7 150/5 CT 2.5VA Series Current Transformer

Features

  • DIN Rail Mounting Clip Included
  • Built In Sealable Terminal Covers
  • Mounting Feet Supplied
  • Narrow Width (45mm)
  • Self Powered
  • Rated System Voltage 0.72/3kV
  • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

    Applications

    • Metering Equipment
    • Energy Monitoring
    • AC Power Control Systems
    • Power Factor Correction
    • Power Quality Measurements



    Hobut CT 132 H7 150/5 CT 2.5VA Series Current Transformer

    Features

    • DIN Rail Mounting Clip Included
    • Built In Sealable Terminal Covers
    • Mounting Feet Supplied
    • Narrow Width (45mm)
    • Self Powered
    • Rated System Voltage 0.72/3kV
    • IEC185, BS 7626, BSEN 60044-1 and IEC 60044-1

      Applications

      • Metering Equipment
      • Energy Monitoring
      • AC Power Control Systems
      • Power Factor Correction
      • Power Quality Measurements



      Hobut Part Number CT 132 H7 150/5
      Technology AC Current Transformer
      Ratio 150/5
      Aperture Size ⌀ 21mm
      VA Rating 2.5VA
      Accuracy Class Class 1
      Output 5 Amp AC (+20%)
      Isolation 3kV (AC, 50Hz, 1 min)
      Bandwidth 50-60Hz
      Mounting Style Panel Mount/Din Rail Mount
      Operating Temperature Range -30°C / 85°C
      Continuous Current (max) 250Amp x 1.2
      Termination Style Screw
      Unit Weight 300g
      Factory Pack Qty 9
