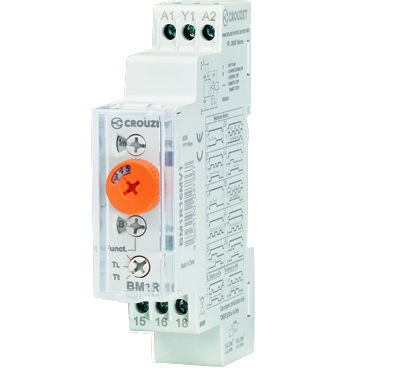

BM1R16MV1 Syr-Line Timer SPDT CO 16Amp Multifunction, 12 - 240VAC/DC, 17.5 mm
Rated 3.5/5 based on 11 customer reviews

BM1R16MV1 Syr-Line Timer SPDT CO 16Amp Multifunction, 12 - 240VAC/DC, 17.5 mm

  • Order within

Free Shipping for $300 Spend

Available: 5pcs in stock , more available 4-6 Weeks
$132.00 $146.67
$145.20inclGST

Free Shipping for $300 Spend

Wishlist Compare

Crouzet BM1R16MV1 Syr-Line Single Pole Multifunction Timer with SPDT CO Contacts

BM1R Timers Syrline 17.5 mm - 1 Relay 16A :

  • Multi-function (12 functions)
  • Multi-range (0.5s - 10days)
  • Multi-voltage 12 →240 V AC/DC
  • LED status indicator
  • Possibility of external load connection in parallel to the control input
  • 3-wire PNP sensor compatible

Multifunction Timers Includes The Following :

  • Function A Delay on energisation 1 relay
  • Function Ac Timing after closing and opening of control contact 1 relay
  • Function At Timing on energisation with memory 1 relay
  • Function B Timing on impulse one shot 1 relay
  • Function C Timing after impulse 1 relay
  • Function D Flip-flop Pause start 1 relay
  • Function Di Flip-flop Pulse start 1 relay
  • Function H Timing on energisation 1 relay
  • Function Ht Delay on energisation with memory 1 relay
  • Function N Watchdog
  • Function Tl Timed impulse relay
  • Function TL Impulse relay

    Crouzet BM1R16MV1 Syr-Line Single Pole Multifunction Timer with SPDT CO Contacts

    BM1R Timers Syrline 17.5 mm - 1 Relay 16A :

    • Multi-function (12 functions)
    • Multi-range (0.5s - 10days)
    • Multi-voltage 12 →240 V AC/DC
    • LED status indicator
    • Possibility of external load connection in parallel to the control input
    • 3-wire PNP sensor compatible

    Multifunction Timers Includes The Following :

    • Function A Delay on energisation 1 relay
    • Function Ac Timing after closing and opening of control contact 1 relay
    • Function At Timing on energisation with memory 1 relay
    • Function B Timing on impulse one shot 1 relay
    • Function C Timing after impulse 1 relay
    • Function D Flip-flop Pause start 1 relay
    • Function Di Flip-flop Pulse start 1 relay
    • Function H Timing on energisation 1 relay
    • Function Ht Delay on energisation with memory 1 relay
    • Function N Watchdog
    • Function Tl Timed impulse relay
    • Function TL Impulse relay
      Crouzet Part Number BM1R16MV1 (Syr-Line Timer Single Pole D16A Multifunction, 12 - 240VAC/DC, 17.5 mm)
      Function Multifunction Timer A - Ac - At - B - C - D - Di - H - Ht -N - TL - Tt
      Nominal Voltage 12 → 240 V AC/DC
      Digital Output 1 x C/O (SPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 16 Amp
      Min Breaking Current 10mA/12VDC
      Timing Ranges Selectable 0.5→10s, 0.05→1min, 0.5→10min, 0.05→1h, 0.5→10h, 0.05→1day, 0.5→10days
      Minimum Pulse Duration 30ms/100ms with load
      Repeatability 0.5%
      Reset Time 120ms
      Isolation 4kV
      Repetition Accuracy 0.5%
      Threshold Adjustment Range 10 → 100 % of the range
      Termination Style Screw
      Weight 80g
      Certification CE, cULus,CCC, ROHS, Reach, WEEE
      Factory Pack Qty 1
      Over Voltage Category 3 in accordance with IEC/EN 60664-1
      Pollution Degree 2 in accordance with IEC/EN 61131-2
      Protection rating IP40 (Front), IP20 (Rear)
      Mechanical Resistance

      Immunity to vibrations IEC/EN 60068-2-6, test Fc

      Immunity to shock IEC/EN 60068-2-27, test Ea

      Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
      Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
      Operating Temperature -20 →+70 °C  except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22
