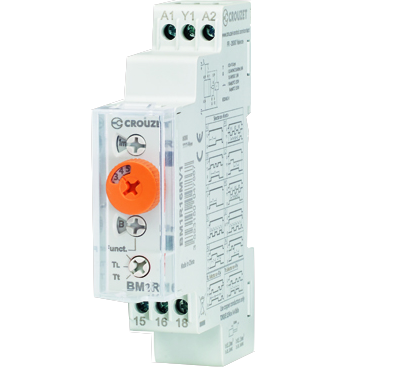

BM1R05MV1 Syr-Line Timer SPDT CO 5Amp Multifunction, 12 - 240VAC/DC, 17.5 mm Replaces 88827105 & 88827135

BM1R05MV1 Syr-Line Timer SPDT CO 5Amp Multifunction, 12 - 240VAC/DC, 17.5 mm Replaces 88827105 & 88827135

Product form
Free pickup in our shop(s)

1 pcs in stock

$74.50 $81.95 inclGST Excl. VAT

        SKU: FE-BM1R05MV1

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Crouzet BM1R05MV1 Syr-Line Single Pole Multifunction Timer with SPDT CO Contacts

        BM1R Timers Syrline 17.5 mm - 1 Relay 5A :

        • Multi-function (12 functions)
        • Multi-range (0.5s - 10days)
        • Multi-voltage 12 →240 V AC/DC
        • LED status indicator
        • Possibility of external load connection in parallel to the control input
        • 3-wire PNP sensor compatible
        • Replaces 88827105 & 88827135

        Multifunction Timers Include The Following :

        • Function A Delay on energisation 1 relay
        • Function Ac Timing after closing and opening of control contact 1 relay
        • Function At Timing on energisation with memory 1 relay
        • Function B Timing on impulse one shot 1 relay
        • Function C Timing after impulse 1 relay
        • Function D Flip-flop Pause start 1 relay
        • Function Di Flip-flop Pulse start 1 relay
        • Function H Timing on energisation 1 relay
        • Function Ht Delay on energisation with memory 1 relay
        • Function N Watchdog
        • Function Tl Timed impulse relay
        • Function TL Impulse relay
          Specification
          Crouzet Part Number BM1R05MV1 (Syr-Line Timer Single Pole 5A Multifunction, 12 - 240VAC/DC, 17.5 mm)
          Function Multifunction Timer A - Ac - At - B - C - D - Di - H - Ht -N - TL - Tt
          Nominal Voltage 12 → 240 V AC/DC
          Digital Output 1 x C/O (SPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 5 Amp
          Min Breaking Current 10mA/12VDC
          Timing Ranges Selectable 0.5→10s, 0.05→1min, 0.5→10min, 0.05→1h, 0.5→10h, 0.05→1day, 0.5→10days
          Minimum Pulse Duration 30ms/100ms with load
          Repeatability 0.5%
          Reset Time 120ms
          Isolation 4kV
          Repetition Accuracy 0.5%
          Threshold Adjustment Range 10 → 100 % of the range
          Termination Style Screw
          Weight 80g
          Certification CE, cULus,CCC, ROHS, Reach, WEEE
          Factory Pack Qty 1
          Over Voltage Category 3 in accordance with IEC/EN 60664-1
          Pollution Degree 2 in accordance with IEC/EN 61131-2
          Protection rating IP40 (Front), IP20 (Rear)
          Mechanical Resistance

          Immunity to vibrations IEC/EN 60068-2-6, test Fc

          Immunity to shock IEC/EN 60068-2-27, test Ea
          Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
          Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
          Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22
