BL1R16MV1, Syr-Line Assymetrical/Mono Timer, 16A CO (SPDT) 0.1s - 10 Days, 12 - 240VAC/DC
Rated 3.5/5 based on 11 customer reviews

BL1R16MV1, Syr-Line Assymetrical/Mono Timer, 16A CO (SPDT) 0.1s - 10 Days, 12 - 240VAC/DC

  • Order within

Ships Free with $300 Spend

Available: 4pcs in stock , more available in 5-7 weeks
$156.90
$172.59inclGST

Ships Free with $300 Spend

Wishlist Compare

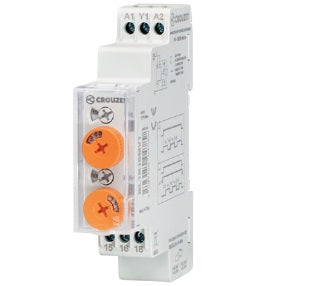

Crouzet BL1R16MV1 Syr-Line Single Pole Multifunction Timer with SPDT CO Contacts

BL1R Timers Syrline 17.5 mm - 1 Relay 16A :

  • Multi-range (0.5s - 10days)
  • Multi-voltage 12 →240 V AC/DC
  • LED status indicator
  • Possibility of external load connection in parallel to the control input
  • 3-wire PNP sensor compatible

Multifunction Timers Includes The Following :

  • Function L Assymetrical Timing, Off start
  • Function Li Assymetrical Timing, Pulse start

    Crouzet BL1R16MV1 Syr-Line Single Pole Multifunction Timer with SPDT CO Contacts

    BL1R Timers Syrline 17.5 mm - 1 Relay 16A :

    • Multi-range (0.5s - 10days)
    • Multi-voltage 12 →240 V AC/DC
    • LED status indicator
    • Possibility of external load connection in parallel to the control input
    • 3-wire PNP sensor compatible

    Multifunction Timers Includes The Following :

    • Function L Assymetrical Timing, Off start
    • Function Li Assymetrical Timing, Pulse start
      Crouzet Part Number BL1R16MV1 (Syr-Line Timer Single Pole Double Throw 1 x 16A Multifunction, 12 - 240VAC/DC, 17.5 mm)
      Function Dual Function Timer L - Li
      Nominal Voltage 12 → 240 V AC/DC
      Digital Output 1 x C/O (SPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 16 Amp
      Min Breaking Current 10mA/12VDC
      Timing Ranges Selectable 0.5→10s, 0.05→1min, 0.5→10min, 0.05→1h, 0.5→10h, 0.05→1day, 0.5→10days
      Minimum Pulse Duration 30ms/100ms with load
      Repeatability 0.5%
      Reset Time 120ms
      Isolation 4kV
      Repetition Accuracy 0.5%
      Threshold Adjustment Range 10 → 100 % of the range
      Termination Style Screw
      Weight 80g
      Certification CE, cULus,CCC, ROHS, Reach, WEEE
      Factory Pack Qty 1
      Over Voltage Category 3 in accordance with IEC/EN 60664-1
      Pollution Degree 2 in accordance with IEC/EN 61131-2
      Protection rating IP40 (Front), IP20 (Rear)
      Mechanical Resistance

      Immunity to vibrations IEC/EN 60068-2-6, test Fc

      Immunity to shock IEC/EN 60068-2-27, test Ea

      Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
      Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
      Operating Temperature -20 →+70 °C  except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22
