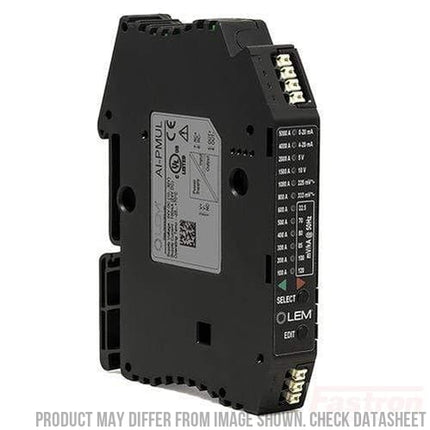

LEM AI-P1A Universal Integrator for Rogowski Coils, Multi Range Input (100 to 5000 Amp) and Output (0.333V,0.225), 1 Amp Output, Adjustable Sensitivity(22.5,70,80,85,100,120mV/kA), Din Rail Mount

The universal Rogowski coil integrator AI-P1A complements LEM’s flexible clip-around coil ART and ARU range. The design is based on digital processing to give combined dynamic range, accuracy and versatility of use. It offers a wide range of output signals both True RMS and instantaneous. AI-P1A is DIN rail mounted and can be stacked for multiphase application without spacing thanks to its low power dissipation. optional

Input signal

  • 1 Amp output for Power Quality Measurements up to the 32nd Harmonic (1600Hz)
  • Accuracy Class 0.5 (IEC 61869-2) [1].
  • Linearity error ≤ 0.10 %. Protection degree IP2X.
  • 35 mm DIN rail mounted.
  • Push-in terminals.
  • 6 selectable sensitivities depending on Rogowski coil: 22.5, 70, 80, 85, 100, 120 mV/kA at 50 Hz.
  • 12 selectable ranges: 100, 200, 300, 400, 500, 600, 800, 1000, 1500, 2000, 4000, 5000 A.
  • Ambient operating temperature −25...+70 °C.

    Advantages

    • Compact design for DIN rail assembly
    • High accuracy Class 0.5 (IEC 61869-2)
    • Setup by user via Select / Edit buttons
    • Clear status indication via bi-color led

    Applications

    • MV/LV substations on LV side: Transformer Condition Monitoring
    • Power metering: current measurement for active power calculation
    • Building sub-metering: energy efficiency monitoring, consumption analysis and cost allocation
    • Power quality monitoring: electrical loads and distribution system equipment
    • Fault Detection, Isolation and Repair (FDIR): isolate the site of the fault
    • Remote Terminal Units (RTU)
    • Phasor Measurement Units (PMU)

    Standards

    • IEC 61010-1: 2010
    • UL
    • EMC: IEC 61326-1:2012

    Options

    Cross power plugin connector: side contacts to stack up to 3 Integrator modules and use only one power supply.

      LEM AI-P1A Universal Integrator for Rogowski Coils, Multi Range Input (100 to 5000 Amp) and Output (0.333V,0.225), 1 Amp Output, Adjustable Sensitivity(22.5,70,80,85,100,120mV/kA), Din Rail Mount

      The universal Rogowski coil integrator AI-P1A complements LEM’s flexible clip-around coil ART and ARU range. The design is based on digital processing to give combined dynamic range, accuracy and versatility of use. It offers a wide range of output signals both True RMS and instantaneous. AI-P1A is DIN rail mounted and can be stacked for multiphase application without spacing thanks to its low power dissipation. optional

      Input signal

      • 1 Amp output for Power Quality Measurements up to the 32nd Harmonic (1600Hz)
      • Accuracy Class 0.5 (IEC 61869-2) [1].
      • Linearity error ≤ 0.10 %. Protection degree IP2X.
      • 35 mm DIN rail mounted.
      • Push-in terminals.
      • 6 selectable sensitivities depending on Rogowski coil: 22.5, 70, 80, 85, 100, 120 mV/kA at 50 Hz.
      • 12 selectable ranges: 100, 200, 300, 400, 500, 600, 800, 1000, 1500, 2000, 4000, 5000 A.
      • Ambient operating temperature −25...+70 °C.

        Advantages

        • Compact design for DIN rail assembly
        • High accuracy Class 0.5 (IEC 61869-2)
        • Setup by user via Select / Edit buttons
        • Clear status indication via bi-color led

        Applications

        • MV/LV substations on LV side: Transformer Condition Monitoring
        • Power metering: current measurement for active power calculation
        • Building sub-metering: energy efficiency monitoring, consumption analysis and cost allocation
        • Power quality monitoring: electrical loads and distribution system equipment
        • Fault Detection, Isolation and Repair (FDIR): isolate the site of the fault
        • Remote Terminal Units (RTU)
        • Phasor Measurement Units (PMU)

        Standards

        • IEC 61010-1: 2010
        • UL
        • EMC: IEC 61326-1:2012

        Options

        Cross power plugin connector: side contacts to stack up to 3 Integrator modules and use only one power supply.

          LEM Part Number AI-P1A
          Function Integrator and True RMS Conditioner for Rogowski Coils
          Measuring Range Selectable 5000,4000,2000,1500,1000,800,600,500,400,300,200,100Amp
          Sensitivity Selectable 22.5,70,80,85,100,120mV/kA @ 50 Hz
          Output 1 Amp AC
          Frequency Measuring Range 50-1500Hz (15th Harmonic)
          Operating Voltage 10-32VDC
          Accuracy 0.5% from 25 to 5000 Amp
          Current Consumpton 100mA (max)
          Dimensions 100mm x 78mm x 15mm
          Mounting Din Rail Mount
          Integrator to Meter cable User Supplied Shielded cable 6mm sqr, up to 6m long
          Operating Temperature -25°C - 70°C
          Storage Temperature -45°C to 80°C
          Isolation (50Hz, 1 min) 1.5kV
          True RMS Response Time 160-190ms
          Termination Style Push-in for 1.5mm sqr wire
          Weight 58g
          Factory Pack Qty 1
          Certifications



          UL, ROHS

          1) The Rogowski coil can measure any primary current as there is no saturation effect.

          2) Not tested given that in the worst case (load = 0 Ohm i.e. short circuit on the output) the peak dissipated power remains low (< 2 Watts)

          3) Frequency bandwidth and phase shift modelling schematic can be provided on request.

          4) Referring to the main phase offset of 90 ° (a Rogowski coil is a derivative current transducer)

          5) Considering a primary conductor of at least ⌀ 15 mm, perpendicular and in contact with the Rogowski coil.

          6) Considering an external conductor of at least ⌀ 15 mm the same current level than internal conductor, perpendicular and in contact with the Rogowski coil.
