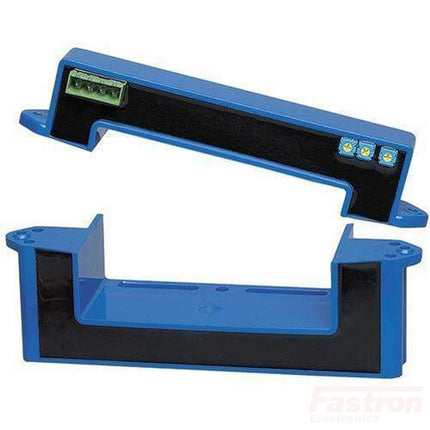

AHR 800 B420, Hall Effect Current Sensor, 800Amp, True RMS 4-20mA output, 104 x 40mm aperture

AHR 800 B420, Hall Effect Current Sensor, 800Amp, True RMS 4-20mA output, 104 x 40mm aperture

Product form
Free pickup in our shop(s)

5 pcs in stock

$639.00 $702.90 inclGST Excl. VAT

        SKU: FE-AHR 800 B420

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        LEM AHR 800 B420, Hall Effect Current Sensor, 800Amp, True RMS 4-20mA output, 104 x 40mm aperture

        Compact and versatile transducers for high AC and DC currents from 500 to 2000A True RMS with signal conditioning. Choice of output types: 4-20 mA, 0-5 V or 0-10 V, Bandwidth: DC 20..6000 Hz

        Features

        • Split Core
        • VFD and SCR waveforms current measurement
        • True RMS output
        • 4-20mA current output
        • Busbar mounting
        • Eliminates insertion loss
        • Isolated plastic case recognised according to UL94-V0

        Advantages

        • Large aperture for cable or busbar up to 104 x 40mm
        • High isolation between primary and secondary circuits
        • Easy installation

        Applications

        -AC Power Supplies or Motors

        True RMS sensing - the most accurate way to monitor power supply or input power

        -VFD Controlled Loads

        VFD output indicates how the motor and attached load are operating

        -SCR Controlled Loads

        Accurate measurement of phase angle fired or burst fired(time proportional) SCR's and switch mode rectifiers. Current measurement gives faster response than temperature measurement.

        -Renewable Energy Installations or Backup Batteries

        Continuous condition monitoring allowing automatic failure detection and prediction

        -Application Domain

        Energy and Automation

        Specification
        LEM Part Number AHR 800 B420
        Technology Open Loop Hall Effect
        ROHS Yes
        Supply Voltage 20 - 50V
        Nominal Current (RMS + DC) 800 Amp
        Maximum Measurement Current (Peak) 2500 Amp
        Output 4-20mA
        Isolation 5.8kV (AC, 50Hz, 1 min)
        Bandwidth 20-6000Hz
        Mounting Style Panel Mount
        Operating Temperature Range -40°C / 70°C
        Accuracy 1%
        Termination Style SFKC 2.5/4-ST-5.08-RF(Phoenix Contact)
        Unit Weight 650g
        Factory Pack Qty 6



        Datasheet
        Application Notes
