AHR 500 B420, Hall Effect Current Transducer, 500A, 4-20mA True RMS output, 20-50VDC supply

AHR 500 B420, Hall Effect Current Transducer, 500A, 4-20mA True RMS output, 20-50VDC supply

Available: Backorder
$511.60+GST
Successful pre-order.Thanks for contacting us!
Wishlist Compare

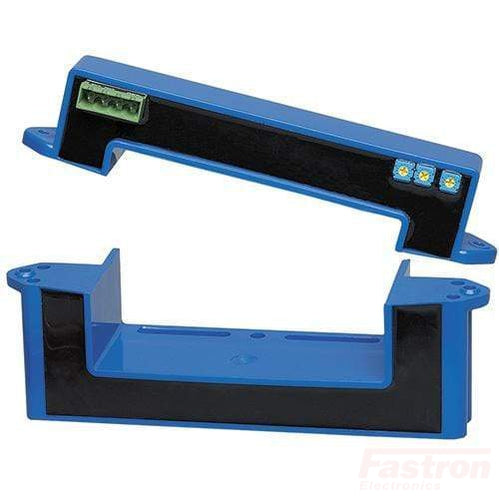

LEM AHR Series Split Core AC/DC Hall Effect Sensor

Compact and versatile transducers for high AC and DC currents from 500 to 2000A True RMS with signal conditioning. Choice of output types: 4-20 mA, 0-5 V or 0-10 V, Bandwidth: DC 20..6000 Hz

Features

  • Split Core
  • VFD and SCR waveforms current measurement
  • True RMS output
  • 4-20mA current output
  • Busbar mounting
  • Eliminates insertion loss
  • Isolated plastic case recognised according to UL94-V0

Advantages

  • Large aperture for cable or busbar up to 104 x 40mm
  • High isolation between primary and secondary circuits
  • Easy installation

Applications

-AC Power Supplies or Motors

True RMS sensing - the most accurate way to monitor power supply or input power

-VFD Controlled Loads

VFD output indicates how the motor and attached load are operating

-SCR Controlled Loads

Accurate measurement of phase angle fired or burst fired(time proportional) SCR's and switch mode rectifiers. Current measurement gives faster response than temperature measurement.

-Renewable Energy Installations or Backup Batteries

Continuous condition monitoring allowing automatic failure detection and prediction

-Application Domain

Energy and Automation

LEM AHR Series Split Core AC/DC Hall Effect Sensor

Compact and versatile transducers for high AC and DC currents from 500 to 2000A True RMS with signal conditioning. Choice of output types: 4-20 mA, 0-5 V or 0-10 V, Bandwidth: DC 20..6000 Hz

Features

  • Split Core
  • VFD and SCR waveforms current measurement
  • True RMS output
  • 4-20mA current output
  • Busbar mounting
  • Eliminates insertion loss
  • Isolated plastic case recognised according to UL94-V0

Advantages

  • Large aperture for cable or busbar up to 104 x 40mm
  • High isolation between primary and secondary circuits
  • Easy installation

Applications

-AC Power Supplies or Motors

True RMS sensing - the most accurate way to monitor power supply or input power

-VFD Controlled Loads

VFD output indicates how the motor and attached load are operating

-SCR Controlled Loads

Accurate measurement of phase angle fired or burst fired(time proportional) SCR's and switch mode rectifiers. Current measurement gives faster response than temperature measurement.

-Renewable Energy Installations or Backup Batteries

Continuous condition monitoring allowing automatic failure detection and prediction

-Application Domain

Energy and Automation

LEM Part Number AHR 1500 B420
Technology Open Loop Hall Effect
ROHS Yes
Supply Voltage 20 - 50V
Nominal Current (RMS + DC) 500 Amp
Maximum Measurement Current (Peak) 2000 Amp
Output 4-20mA
Isolation 5.8kV (AC, 50Hz, 1 min)
Bandwidth 20-6000Hz
Mounting Style Panel Mount
Operating Temperature Range -40°C / 70°C
Accuracy 1%
Termination Style SFKC 2.5/4-ST-5.08-RF(Phoenix Contact)
Unit Weight 650g
Factory Pack Qty 6
