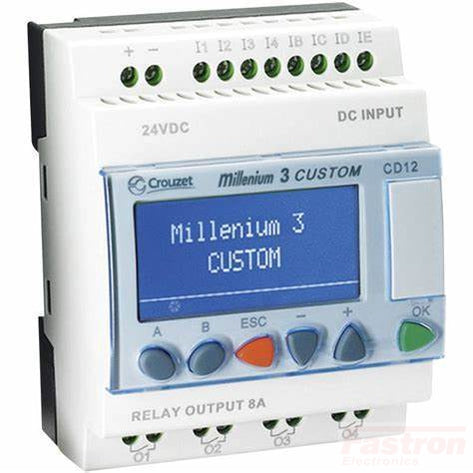

88974041 Millenium 3 Essential PLC CD12- 8I/4O R, 8 x On/Off inputs, Incl 4 analogue inputs, 4 Relay Outputs incl 1 x PWM output, 24 VDC, NON EXPANDABLE

88974041 Millenium 3 Essential PLC CD12- 8I/4O R, 8 x On/Off inputs, Incl 4 analogue inputs, 4 Relay Outputs incl 1 x PWM output, 24 VDC, NON EXPANDABLE

Product form
Free pickup in our shop(s)

5 pcs in stock

$405.29 $445.82 inclGST Excl. VAT

        SKU: FE-88974041

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        88974041 Crouzet Millenium 3 Essential CD12- 8I/4O R, 8 x On/Off inputs, Incl 4 analogue inputs, 4 Relay Outputs incl 1 x PWM output, 24 VDC, NON EXPANDABLE

        • Highly visible blue LCD with 4 lines of 18 characters and configurable backlighting
        • Allow the use of the entire library of specific functions blocs of the software workshop
        • Extended temperature range (-20 °C →+70 °C)
        • Analogue inputs 0-10 VDC, Potentiometer, NTC, LDR (0-20 mA/Pt100 with converters)
        • 2 Additional Inputs to XD10
        • Non Expandable
          Specification
          Crouzet Part Number 88974041 (CD12- 8I/4O R)
          Analogue Inputs 0-10VDC (x4)
          Digital Inputs 12/24VDC (4.4mA @ 12VDC) (x8)
          Digital Outputs 4 x Relay, 5-30VDC,24-250VAC @ 10mA minimum
          PWM SSR Output 12-24VDC @ 500mA (x1)
          Expandable Yes
          LCD Display Yes
          Mounting Style DIN Rail Mount (71.2mm)
          Supply Voltage Range 24VDC (21.6 - 28.8VDC)
          Termination Style Screw
          Weight 250g
          Certification CE, UL, CSA, GL
          Factory Pack Qty 1
          Over Voltage Category 3 in accordance with IEC/EN 60664-1
          Pollution Degree 2 in accordance with IEC/EN 61131-2
          Protection rating IP40 (Front), IP20 (Rear)
          Mechanical Resistance

          Immunity to vibrations IEC/EN 60068-2-6, test Fc

          Immunity to shock IEC/EN 60068-2-27, test Ea
          Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
          Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
          Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22
