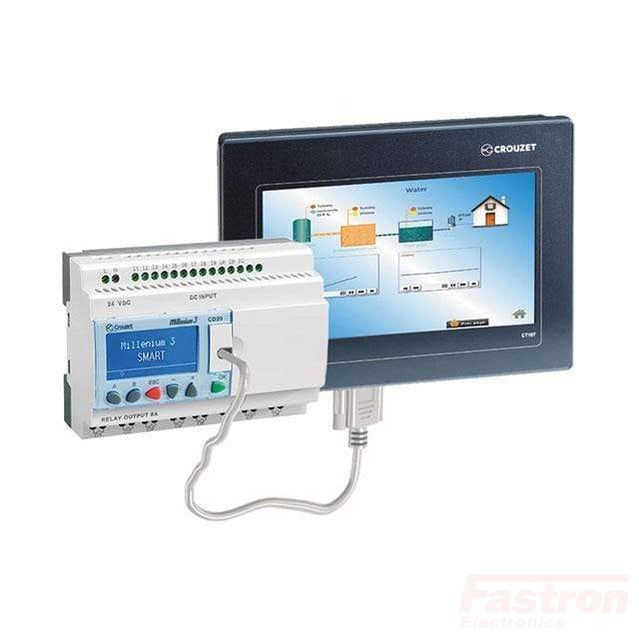

Crouzet Essential Series CT104, 4.3" HMI Touch Screen(88970524) with Millenium 3 Cable(88970505), 24VDC, RS485 Modbus RTU

Crouzet Essential Series CT104, 4.3" HMI Touch Screen(88970524) with Millenium 3 Cable(88970505), 24VDC, RS485 Modbus RTU

Crouzet Part Number

88970524 (CT104) + 88970524

Function Human Machine Interface (Touch Screen) + HMI Connection Cable
Nominal Voltage 24VDC (19.2 - 28.8VDC) @ 300mA
Display Size 4.3"
Resolution 480 x 272
Brightness 400 cd/m²
Storage Memory 128MByte
RAM Memory 128MByte
USB Host USB 2.0
Ethernet N/A
Port RS232 COM1 Male
Port RS485 COM1 2/4 wires Male, COM3 2 wires Male
Voltage Resistance 500VAC (1 Min)
Dimensions 128 x 102 x 32 mm / 5.04 x 4.02 x 1.26”
Real Time Clock 5 Years with CR2032 Battery
Termination Style Screw
Weight 250g
Certification CE
Factory Pack Qty 1
Over Voltage Category 3 in accordance with IEC/EN 60664-1
Pollution Degree 2 in accordance with IEC/EN 61131-2
Protection rating IP40 (Front), IP20 (Rear)
Mechanical Resistance

Immunity to vibrations IEC/EN 60068-2-6, test Fc

Immunity to shock IEC/EN 60068-2-27, test Ea

Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22

Built in Communications driver compatible with Millenium 3, Millenium EVO, and EM4 PLC's. See our PLC Section for Pricing and Specification
