$136.00 $149.60 inclGST Excl. VAT
SKU: FE-88827185
Available on working days between 9:00 am to 6:00 pm.
3-wire PNP sensor compatible

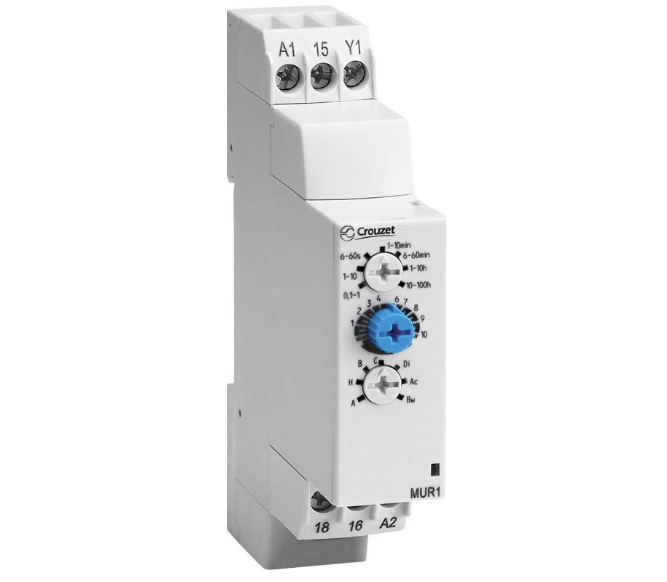

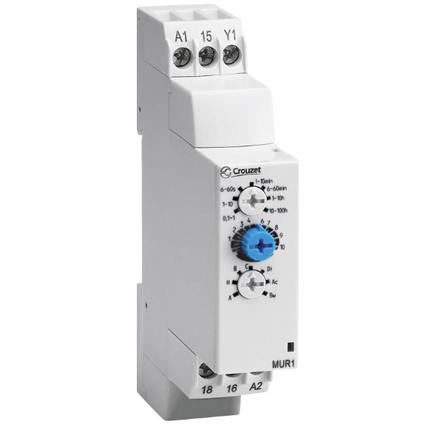

| Crouzet Part Number | 88827103 (Syr-Line Timer SinglePole Double Throw 1 x 8A Multifunction, 12 - 240VAC/DC, 17.5 mm) |
| Function |
Multifunction Timer A - Ac - At - B - Bw - C - D - Di - H - Ht |
| Nominal Voltage | 12 → 240 V AC/DC |
| Digital Output | 1 x C/O (DPDT) (Changeover -Single Pole Double Throw-), 250VAC/DC @ 8 Amp |
| Min Breaking Current | 10mA/12VDC |
| Timing Ranges | Selectable 1s - 10s - 1 min - 10min - 1h, 10h, 100h |
| Minimum Pulse Duration | 30ms/100ms with load |
| Repeatability | 0.5% |
| Reset Time | 120ms |
| Isolation | 4kV |
| Repetition Accuracy | 0.5% |
| Threshold Adjustment Range | 10 → 100 % of the range |
| Termination Style | Screw |
| Weight | 80g |
| Certification | CE, cULus,CCC, ROHS, Reach, WEEE |
| Factory Pack Qty | 1 |
| Over Voltage Category | 3 in accordance with IEC/EN 60664-1 |
| Pollution Degree | 2 in accordance with IEC/EN 61131-2 |
| Protection rating | IP40 (Front), IP20 (Rear) |
| Mechanical Resistance |
Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea |
| Resistance to HF Interference | Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12 |
| Conducted and radiated emissions | Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure) |
| Operating Temperature | -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22 |
