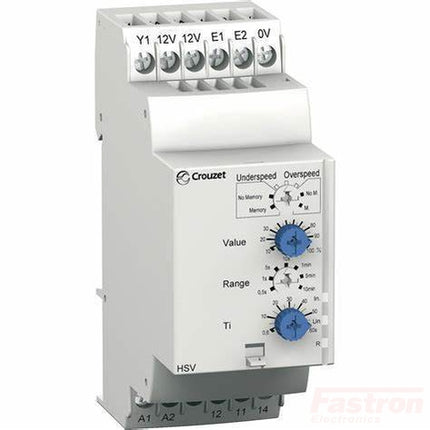

Crouzet Part Number	84874320 (Single Phase C-Lynx Speed Monitoring Relay With SPDT Contacts)
Function	Speed Control
Nominal Voltage	24 → 240 V AC/DC
Frequency of Measured Signal	1.5 m Hz minimum, 22 Hz maximum
Measurement Ranges	0,5 s - 1 s - 5 s - 10 s - 1 mn - 5 mn - 10 mn
Digital Output	1 x C/O Relays, 250VAC/DC @ 5 Amp
Min Breaking Current	10mA/5VDC
Inhibit Delay Timing Range	0.6 → 60s (0, +10% of full scale)
Delay on Pickup	50ms
Threshold Crossing Response	15ms
Reset Time (Memory Mode)	50ms
Reset Time (Power Break)	1500ms
Isolation	4kV
Repetition Accuracy	0.5%
Threshold Adjustment Range	10 → 100 % of the range
Termination Style	Screw
Weight	170g
Certification	UL, CSA, ROHS
Factory Pack Qty	1
Over Voltage Category	3 in accordance with IEC/EN 60664-1
Pollution Degree	2 in accordance with IEC/EN 61131-2
Protection rating	IP40 (Front), IP20 (Rear)
Mechanical Resistance	Immunity to vibrations IEC/EN 60068-2-6, test Fc Immunity to shock IEC/EN 60068-2-27, test Ea
Resistance to HF Interference	Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
Conducted and radiated emissions	Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
Operating Temperature	-20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22



• Product Datasheet
