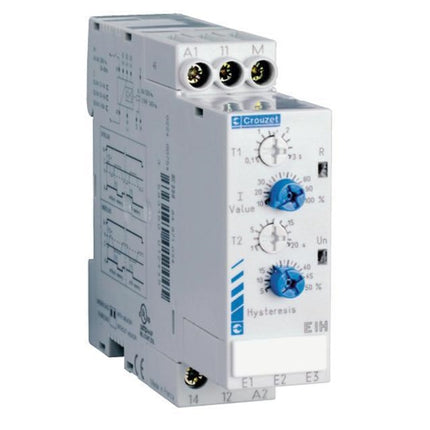

84871034, Current Monitoring Relay with Hysteresis and T2 time Single Phase 0.1 - 10 Amp EIH Series, 100-240VAC/24VDC Supply, Obsolete, Replaced by 84871130

84871034, Current Monitoring Relay with Hysteresis and T2 time Single Phase 0.1 - 10 Amp EIH Series, 100-240VAC/24VDC Supply, Obsolete, Replaced by 84871130

Product form

Out of stock

$342.69 $376.96 inclGST Excl. VAT

        SKU: FE-84871034

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Crouzet Automation 84871034, Current Monitoring Relay with Hysteresis and T2 time Single Phase 0.1 - 10 Amp EIH Series, 100-240VAC/24VDC Supply, Obsolete, Replaced by 84871130

        For Current Monitoring of AC Current from 1 Amp to 20 Amp.

        Features:

        • 0.1 to 10 Amp Trip Range
        • 0.1 to 10 Second Trip Delay
        • 0 to 100% Hysteresis
        • T2 Hysteresis Delay Time
        • True RMS measurement
        Specification
        Crouzet Part Number 84871034 (Single Phase C-Lynx Current Monitoring Relay With SPDT Contacts)
        Function Current Threshold Montoring
        Nominal Current 0.1- 10 Amp AC
        Digital Outputs 1 x C/O Relays, 250VAC/DC @ 8 Amp
        Min Breaking Current 10mA/5VDC
        Delay on Threshhold Crossing 0.1 → 3s (0, +10%)
        Delay on Pickup 600ms
        Alarm Delay on Time (max) 200ms
        Reset Time 1500ms
        Adjustable Hysteresis 5 - 50% of Threshhold
        Maximum Measurement Cycle Time 30ms/True RMS Measurement
        Measurement Accuracy 1%
        Supply Voltage Range 24VAC/DC 48VAC 120/220VAC +/-15%
        Termination Style Screw
        Weight 170g
        Certification CE, UL, CSA, GL, ROHS
        Factory Pack Qty 1
        Over Voltage Category 3 in accordance with IEC/EN 60664-1
        Pollution Degree 2 in accordance with IEC/EN 61131-2
        Protection rating IP40 (Front), IP20 (Rear)
        Mechanical Resistance

        Immunity to vibrations IEC/EN 60068-2-6, test Fc

        Immunity to shock IEC/EN 60068-2-27, test Ea
        Resistance to HF Interference Immunity to radiated electrostatic fields IEC/EN 61000-4-3 Immunity to fast transients (burst immunity) IEC/EN 61000-4-4, level 3 Immunity to shock waves IEC/EN 61000-4-5 Radio frequency in common mode IEC/EN 61000-4-6, level 3 Voltage dips and breaks (AC) IEC/EN 61000-4-11 Immunity to damped oscillatory waves IEC/EN 61000-4-12
        Conducted and radiated emissions Class B (*) in accordance with EN 55022, EN 55011 (CISPR22, CISPR11) group 1 (*) Except configuration (88 970 1.1 or 88 970 1.2) + (88 970 250 or 88 970 270) + 88 970 241 class A (class B in a metal enclosure)
        Operating Temperature -20 →+70 °C except CB and XB versions in VDC : -30 →+70 °C (+40 °C in a non-ventilated enclosure) in accordance with IEC/EN 60068-2-1 and IEC/EN 60068-22
