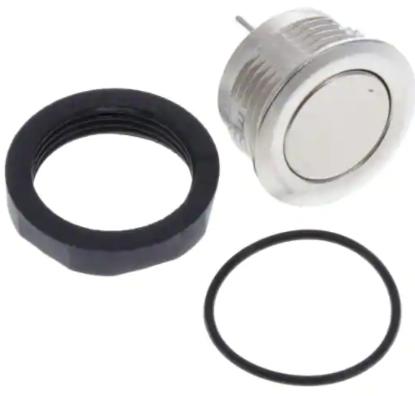

3-109-091, MCS 16, Metal Switch 16mm Short Stroke with Green/Red Point Illumination, 125mA @ 4-48VDC, 1 Million Ops, Pin Terminals with Soldering aid, Ag Contact material, OFF - (ON), IP67

3-109-091, MCS 16, Metal Switch 16mm Short Stroke with Green/Red Point Illumination, 125mA @ 4-48VDC, 1 Million Ops, Pin Terminals with Soldering aid, Ag Contact material, OFF - (ON), IP67

Product form

Out of stock

$21.50 $23.65 inclGST Excl. VAT

        SKU: FE-3-109-091

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Schurter 3-109-091 MCS 16, Metal Switch 16mm Short Stroke with Green/Red Point Illumination, 125mA @ 4-48VDC, 1 Million Ops, Pin Terminals with Soldering aid, Ag Contact material, OFF - (ON), IP67

        Description

        • Momentary action switch available in version Standard, with Point Illumination, Lettering, varnished in different colours
        • Assembly by mounting with nut
        • Pin connections, Pins with Soldering Aid or Clip for Pins

        Characteristics

        • Housing and actuator material types: zinc die-cast with nickel plating or stainless steel
        • Wide range of materials, colours, lettering, colours of illumination - Switching voltage max. 48 VDC, switching current max. 125 mA
        • Zinc die-cast for housing and actuator For indoor use, no illumination, no lettering
        • Stainless Steel for actuator Optional point illumination and laser lettering with standard or customer-specific symbols
        • Stainless Steel for housing and actuator for use in harsh environments outdoors (see technical data)
        • Varnished Version Colour adjustments to customer housings possible, as standard: Signal colors red, green and yellow, optional: housing or actuator varnishing according to provided color specifications the varnished actuators are sealed by transparent lacqueur after the laser lettering
        Specification
        Schurter Part Number 3-109-091
        Switching Type Standard
        Switch Size (Cutout) 14.5 x ø16mm
        Nominal Voltage 4-48VDC
        Rated Power 1.2W
        Illumination Type Red/Green
        Illumination voltage 24VDC
        Nominal Current (AC/DC) 125mA
        Contact Resistance ON/OFF <20m Ohm/ >10 M Ohm
        Dimensions ø19 x 15mm
        Operating Temperature Range -20°C / 60°C
        Termination Pin terminals with soldering aid
        IP Protection Rating IP67 with 0098.9201
        Unit Weight 40g
        Factory Pack Qty 10



        Datasheet

        Read more

        Specifications

        • Weight: 200gr
        • Usage: Indoor & outdoor
