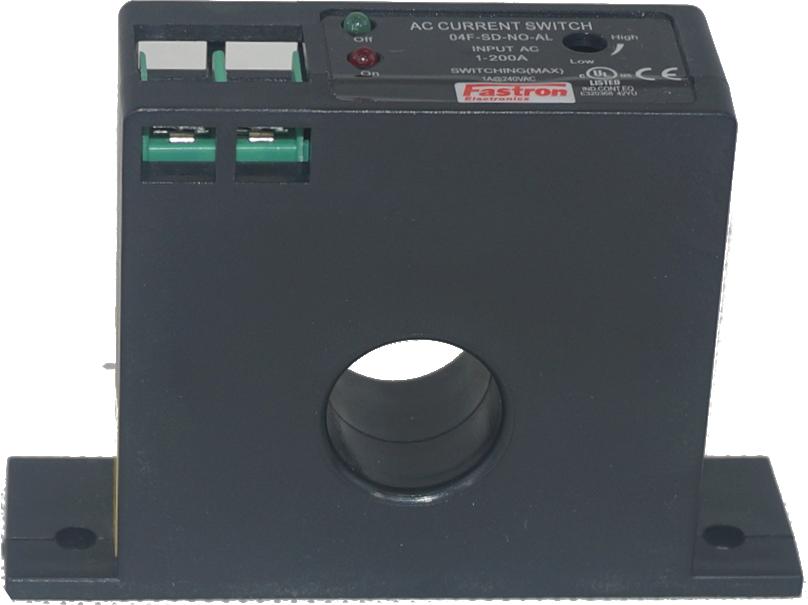

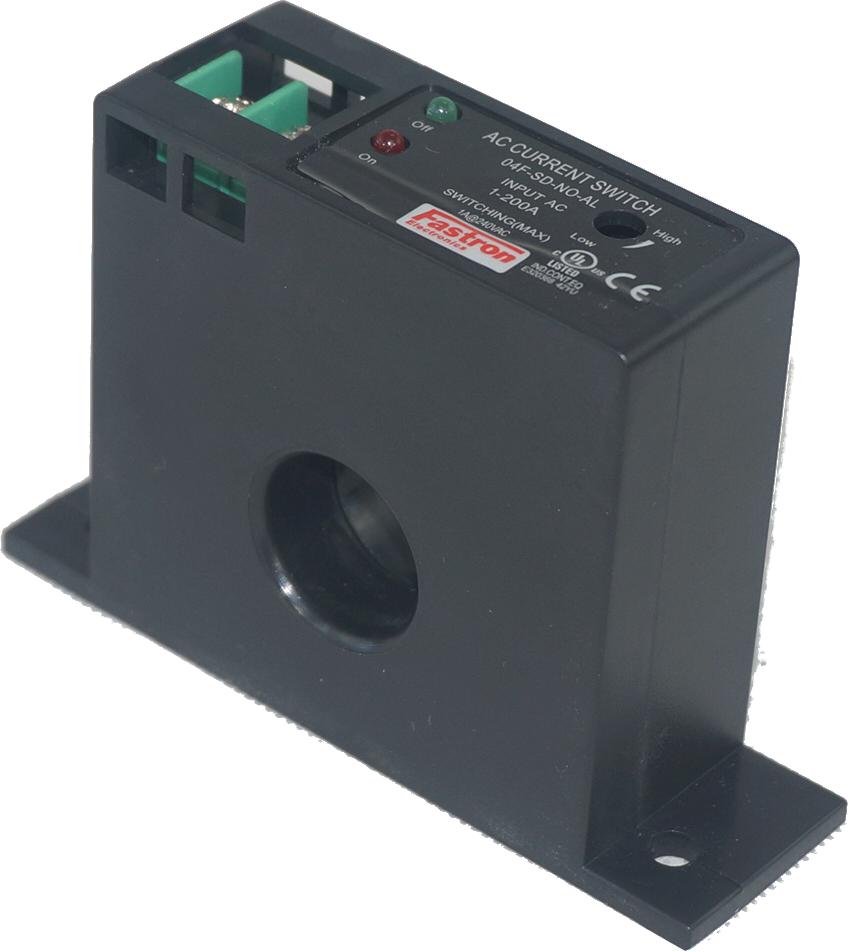

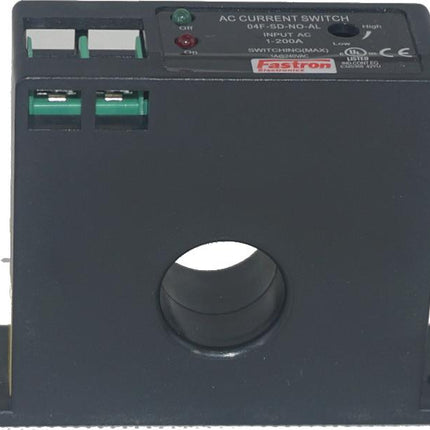

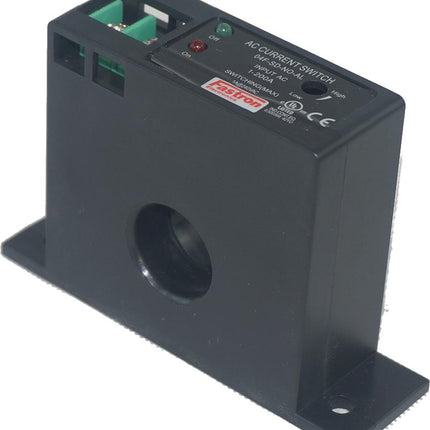

04F-SD-NO-AL, AC Current Switch, Range 1-200Amp Self Powered, 10% Accuracy, Minimum Threshold 0.5 +/-0.2Amp Average RMS Current Sensing, Normally Open Contacts, 1Amp @ 240VAC Adjustable Trip. Replaces Dwyer CCS-111100

04F-SD-NO-AL, AC Current Switch, Range 1-200Amp Self Powered, 10% Accuracy, Minimum Threshold 0.5 +/-0.2Amp Average RMS Current Sensing, Normally Open Contacts, 1Amp @ 240VAC Adjustable Trip. Replaces Dwyer CCS-111100

Product form
Free pickup in our shop(s)

134 pcs in stock

$47.00 $51.70 inclGST Excl. VAT

        SKU: FE-04F-SD-NO-AL

        Do you need a large stock? Contact us

        Available on working days between 9:00 am to 6:00 pm.

        Send us a message!

        Description

        Fastron 04F-SD-NO-AL, AC Current Switch, Rangege 1-200Amp Self Powered, 10% Accuracy, Minimum Threshold 0.5 +/-0.2Amp Average RMS Current Sensing, Normally Open Contacts, 1Amp @ 240VAC Adjustable Trip. Replaces Dwyer CCS-111100

        Compact and versatile current switches for detection of AC Currents, Multirange 1-10Amp, 10-50Amp, 50-200Amp via jumper

        Features

        • Self Powered
        • Multirange selector
        • Panel mounting
        • Eliminates insertion loss
        • Isolated plastic case recognised according to UL94-V0

        Advantages

        • Highly accurate low current measurement down to 1Amp
        • High isolation between primary and secondary circuits
        • Easy installation

        Applications

        • Fault Detection
        • Motor or Fan Protection

        Application Domain

        Energy and Automation

        Specification
        Fastron Part Number 04F-SP-NO-AL
        Technology Split Core AC Current Transformer
        Alarm Type NO Relay 1Amp @ 240VAC
        Supply Voltage Self Powered
        Load Current (RMS) Multirange 1-200Amp
        Trip Point Adjustable
        Isolation 2kV (AC, 50Hz, 1 min)
        Bandwidth 50/60Hz
        Mounting Style Panel Mount
        Operating Temperature Range -25°C / 70°C
        Accuracy 10% (Minimum Threshold 0.5 +/-0.2 Amp)
        Termination Style Screw Terminals
        Unit Weight 200g
        Certifications UL E320368, CE, Rohs compliant



        Datasheet


        Read more

        Specifications

        • Weight: 200gr
        • Usage: Indoor & outdoor
